3 x 500 paper deck lifter-drive assembly
This procedure describes removing the paper deck cassette 1 lifter-drive assembly. Use this procedure for
any of the paper deck lifter assemblies.
1. Remove the 3 x 500 rear cover. See
3 x 500 rear cover on page 225.
2. Disconnect two connectors (callout 1).

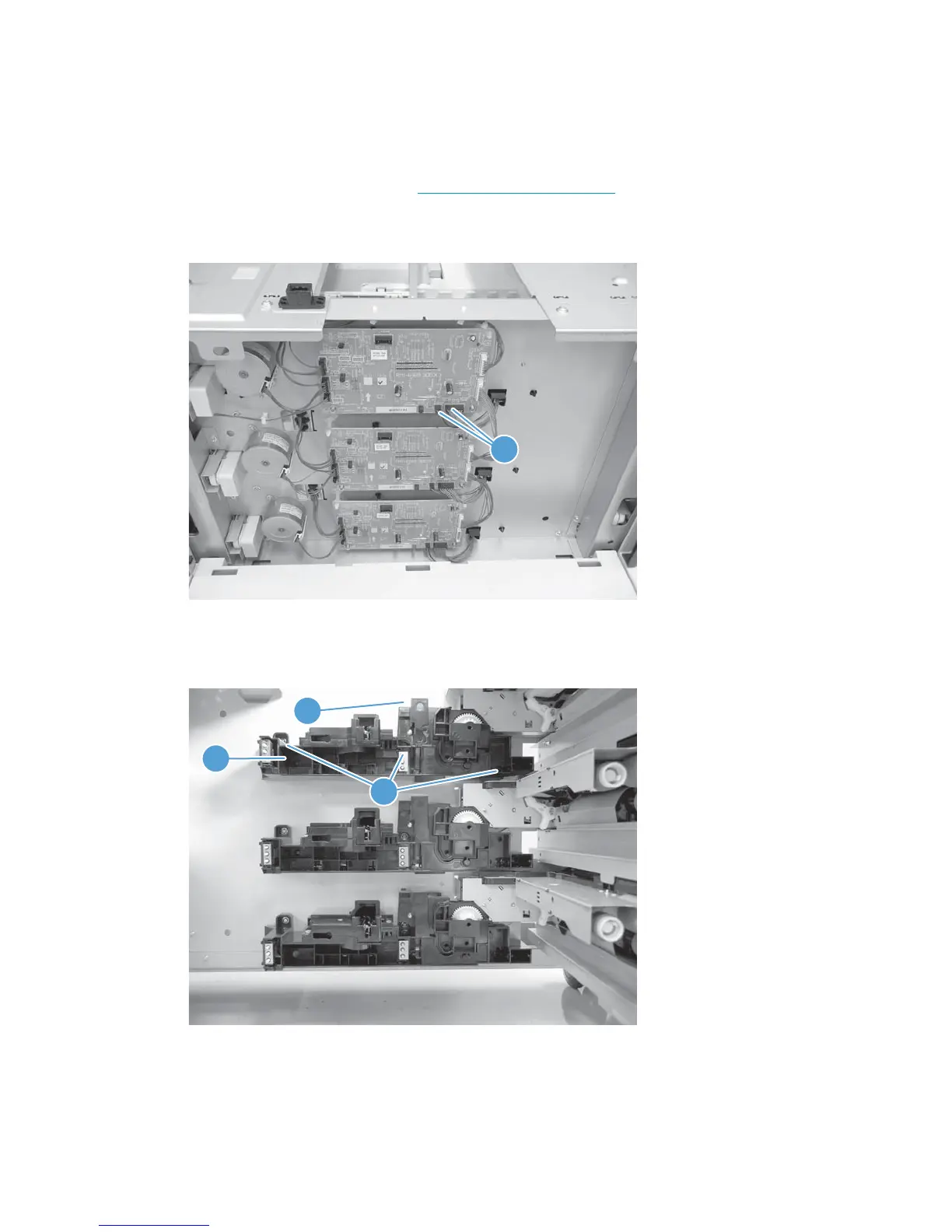

Figure 2-193 Remove the 3 x 500 paper deck lifter-drive assembly (1 of 2)
1
3. Remove all of the cassettes, remove three screws (callout 1), release one tab (callout 2), and then
remove the cassette lifter assembly (callout 3).
Figure 2-194 Remove the 3 x 500 paper deck lifter-drive assembly (2 of 2)
3
2
1
228 Chapter 2 Removal and replacement ENWW
