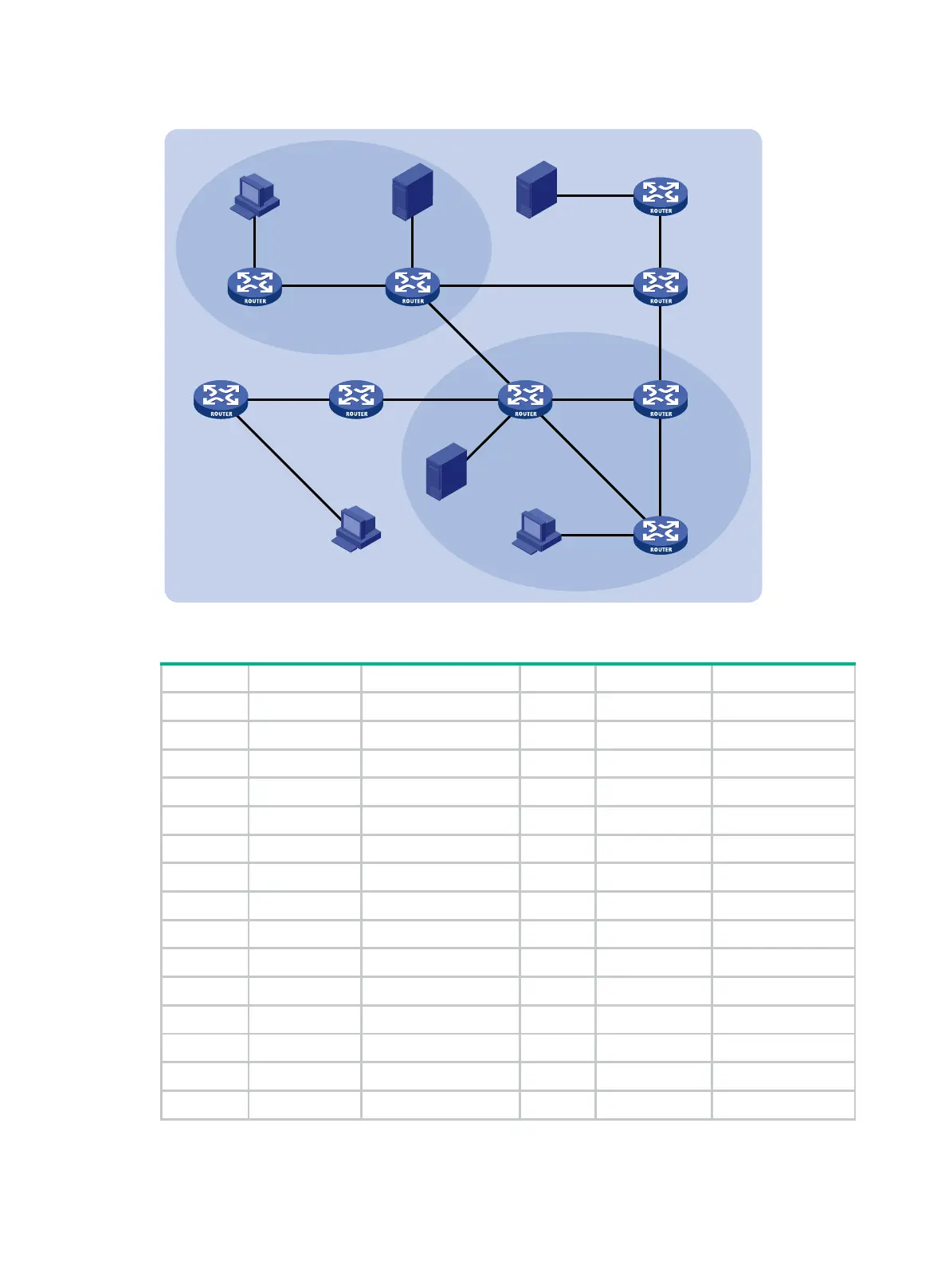

Figure 46 Network diagram
Table 10 Interface and IP address assignment
Device
Interface
IP address
Device
Interface
IP address
Router A GE1/0/1 192.168.1.1/24 Router D GE1/0/1 10.110.5.2/24
Router A GE1/0/2 10.110.1.1/24 Router D GE1/0/2 10.110.7.1/24
Router B GE1/0/1 192.168.2.1/24 Router D GE1/0/3 10.110.8.1/24
Router B GE1/0/2 10.110.1.2/24 Router E GE1/0/1 192.168.4.1/24
Router B GE1/0/3 10.110.2.1/24 Router E GE1/0/2 10.110.4.2/24
Router B GE1/0/4 10.110.3.1/24 Router E GE1/0/3 10.110.7.2/24
Router C GE1/0/1 192.168.3.1/24 Router F GE1/0/1 10.110.9.1/24
Router C GE1/0/2 10.110.4.1/24 Router F GE1/0/2 10.110.8.2/24
Router C GE1/0/3 10.110.5.1/24 Router F GE1/0/3 10.110.3.2/24
Router C GE1/0/4 10.110.2.2/24 Router G GE1/0/1 192.168.5.1/24
Router C GE1/0/5 10.110.6.1/24 Router G GE1/0/2 10.110.9.2/24
Router H GE1/0/1 10.110.5.2/24 Source 1 — 192.168.2.10/24
Router H GE1/0/2 10.110.7.1/24 Source 2 — 192.168.3.10/24
Router I GE1/0/1 192.168.6.1/24 Source 3 — 192.168.5.10/24
Router I GE1/0/2 10.110.10.2/24
Router A
Router B
ZBR
Router C
ZBR
Router D
ZBR
Router E
Router HRouter I
Router F
Router G
Source 3
Source 1
Source 2
Receiver
Host A
GE1/0/3
GE1/0/2
GE1/0/4
GE1/0/1
GE1/0/5 GE1/0/1
GE1/0/2
GE1/0/3
GE1/0/2
GE1/0/1
GE1/0/2
GE1/0/1
GE1/0/2
GE1/0/3
GE1/0/1
GE1/0/1
GE1/0/2 GE1/0/2
GE1/0/1
GE1/0/1 GE1/0/1
GE1/0/3
GE1/0/4 GE1/0/3GE1/0/2
GE1/0/2
Admin-scope 2
PIM-SM
Global-scope
Admin-scope 1
Receiver
Host B
Receiver
Host C
