HP MSR4080 Configuration Guide

380
IPv6 PIM-SSM configuration example
Network requirements
As shown in Figure 109:
•
OSPFv3 runs on the network.
•
The receivers receive VOD information through multicast. The receiver groups of different
organizations form stub networks, and one or more receiver hosts exist in each stub network.
The entire IPv6 PIM domain operates in the SSM mode.
•
Host A and Host C are IPv6 multicast receivers in two stub networks, N1 and N2.
•
The SSM group range is FF3E::/64.
•
MLDv2 runs between Router A and N1, and between Router B, Router C, and N2.

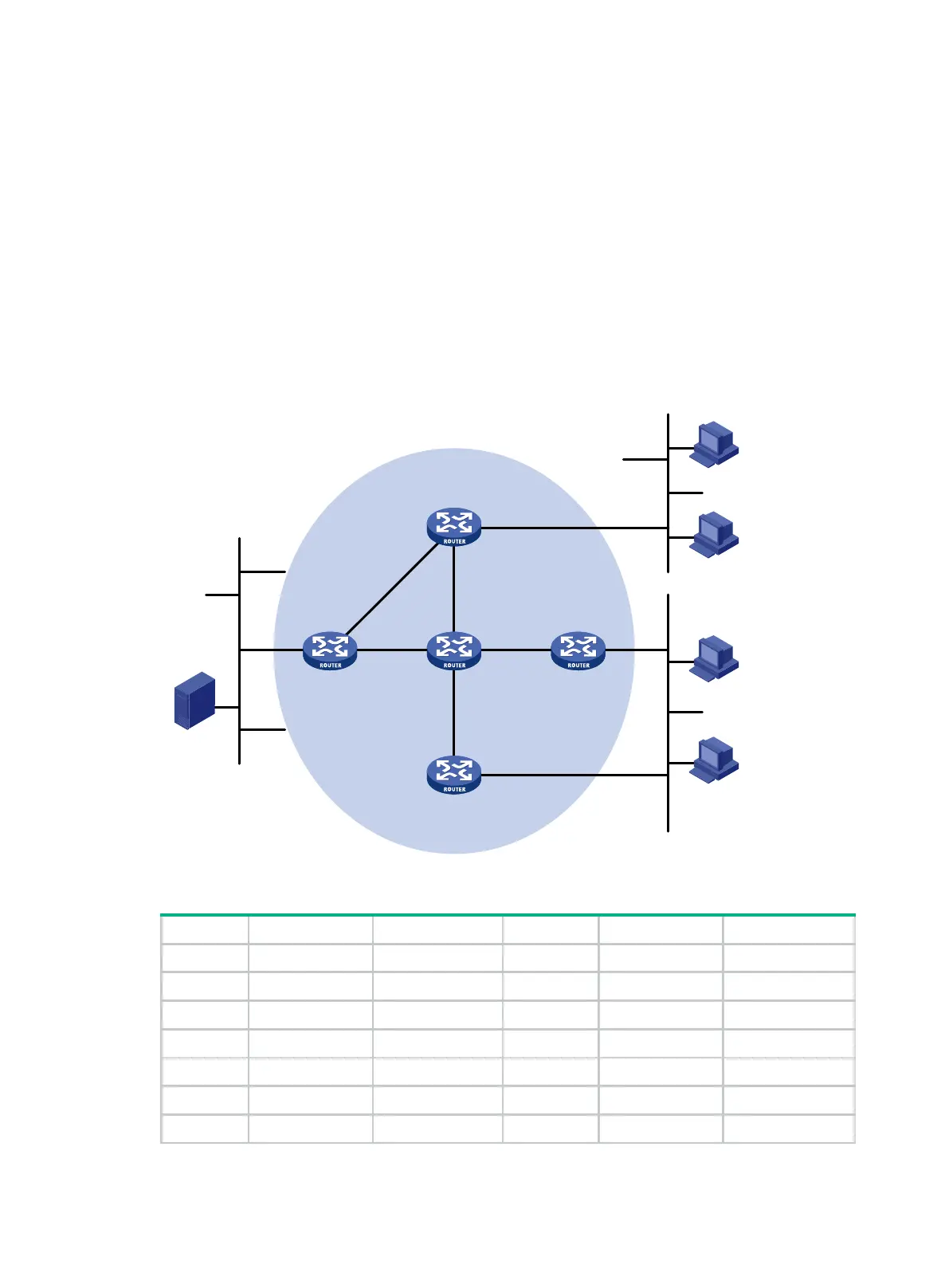

Figure 109 Network diagram
Table 29 Interface and IPv6 address assignment
Device
Interface
IPv6 address
Device
Interface
IPv6 address
Router A GE1/0/1 1001::1/64 Router D GE1/0/1 4001::1/64
Router A GE1/0/2 1002::1/64 Router D GE1/0/2 1002::2/64
Router A GE1/0/3 1003::1/64 Router D GE1/0/3 4002::1/64
Router B GE1/0/1 2001::1/64 Router E GE1/0/1 3001::2/64
Router B GE1/0/2 2002::1/64 Router E GE1/0/2 2002::2/64
Router C GE1/0/1 2001::2/64 Router E GE1/0/3 1003::2/64
Router C GE1/0/2 3001::1/64 Router E GE1/0/4 4002::2/64
Ethernet
EthernetEthernet
Source
4001::100/64
Router A
Router B
Router C
Router D
Receiver
Host A
Host B
Host C
Host D
Receiver
N1N2
Router E
GE1/0/1
GE1/0/1
GE1/0/1
GE1/0/1
GE1/0/3
GE1/0/3
GE1/0/2GE1/0/2
GE1/0/2
GE1/0/2
GE1/0/2
GE1/0/1
GE1/0/4
GE1/0/3
IPv6 PIM-SSM
