HP MSR4080 Configuration Guide

215
Item
Network requirements
IP multicast routing and IPv6
multicast routing
• Enable IP multicast routing on P.
•
Enable IP multicast routing for the public network on PE 1, PE 2, and
PE 3.
• Enable IPv6 multicast routing for VPN instance a on PE 1, PE 2, and
PE 3.
• Enable IPv6 multicast routing for VPN instance b on PE 2 and PE 3.
• Enable IPv6 multicast routing on CE a1, CE a2, CE a3, CE b1, and CE
b2.
MLDv1
• Enable MLDv1 on GigabitEthernet 1/0/2 of PE 1.
• Enable MLDv1 on GigabitEthernet 1/0/1 of CE a2, CE a3, and CE b2.
PIM and IPv6 PIM
Enable PIM-SM on the public network and IPv6 PIM-SM for VPN instances
a
and
b
:
• Enable PIM-SM on all interfaces of P.
• Enable PIM-SM on all public network interfaces and IPv6 PIM-SM on
private network interfaces of PE 1, PE 2, and PE 3.
• Enable IPv6 PIM-SM on all interfaces that do not have receivers on
CE a1, CE a2, CE a3, CE b1, and CE b2.
• Configure Loopback 1 of P as a C-BSR and a C-RP for the public
network to provide services for all IPv4 multicast groups.
• Configure Loopback 1 of CE a2 as a C-BSR and a C-RP for VPN
instance a to provide services for all IPv6 multicast groups.
• Configure Loopback 2 of PE 3 as a C-BSR and a C-RP for VPN
instance b to provide services for all IPv6 multicast groups.

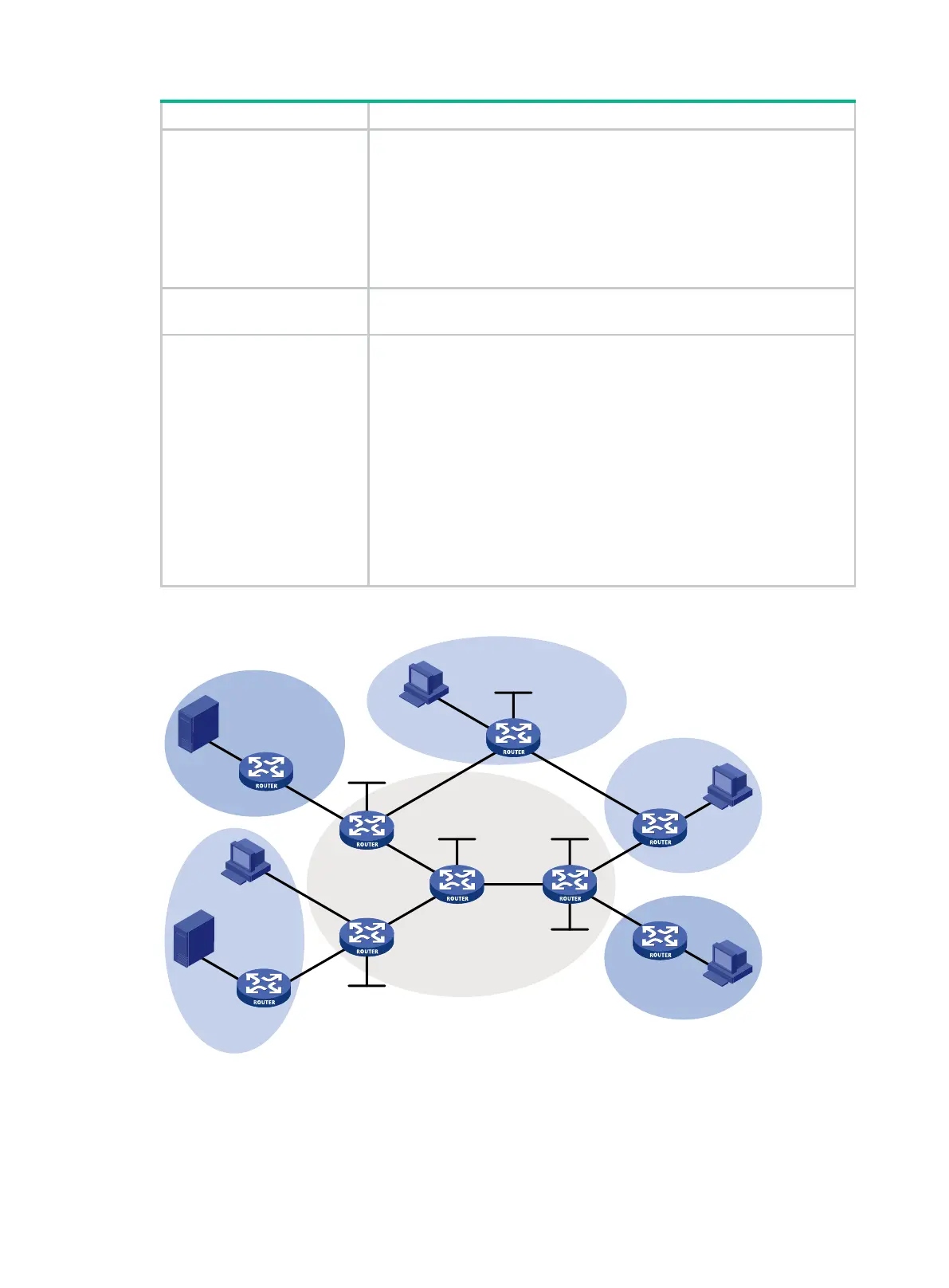

Figure 72 Network diagram
GE1/0/3
GE1/0/1
Loop1
Loop1
Loop1
Loop1
Loop2
Loop1
GE1/0/1
GE1/0/2
GE1/0/1
GE1/0/2
GE1/0/3
GE1/0/1
GE1/0/1
GE1/0/3
GE1/0/2
GE1/0/1
GE1/0/2
GE1/0/2
GE1/0/2
GE1/0/3
GE1/0/2
GE1/0/1
GE1/0/1
GE1/0/1
GE1/0/2
GE1/0/3
S 2
S 1
P
PE 1
PE 2
PE 3
GE1
/0/2
CE a1
CE a2
CE a3
CE b1
CE b2
Public
VPN b
VPN b
VPN a
VPN a
VPN a
GE1/0/3
R 1
R 2
R 3
R 4
