HP MSR4080 Configuration Guide

230

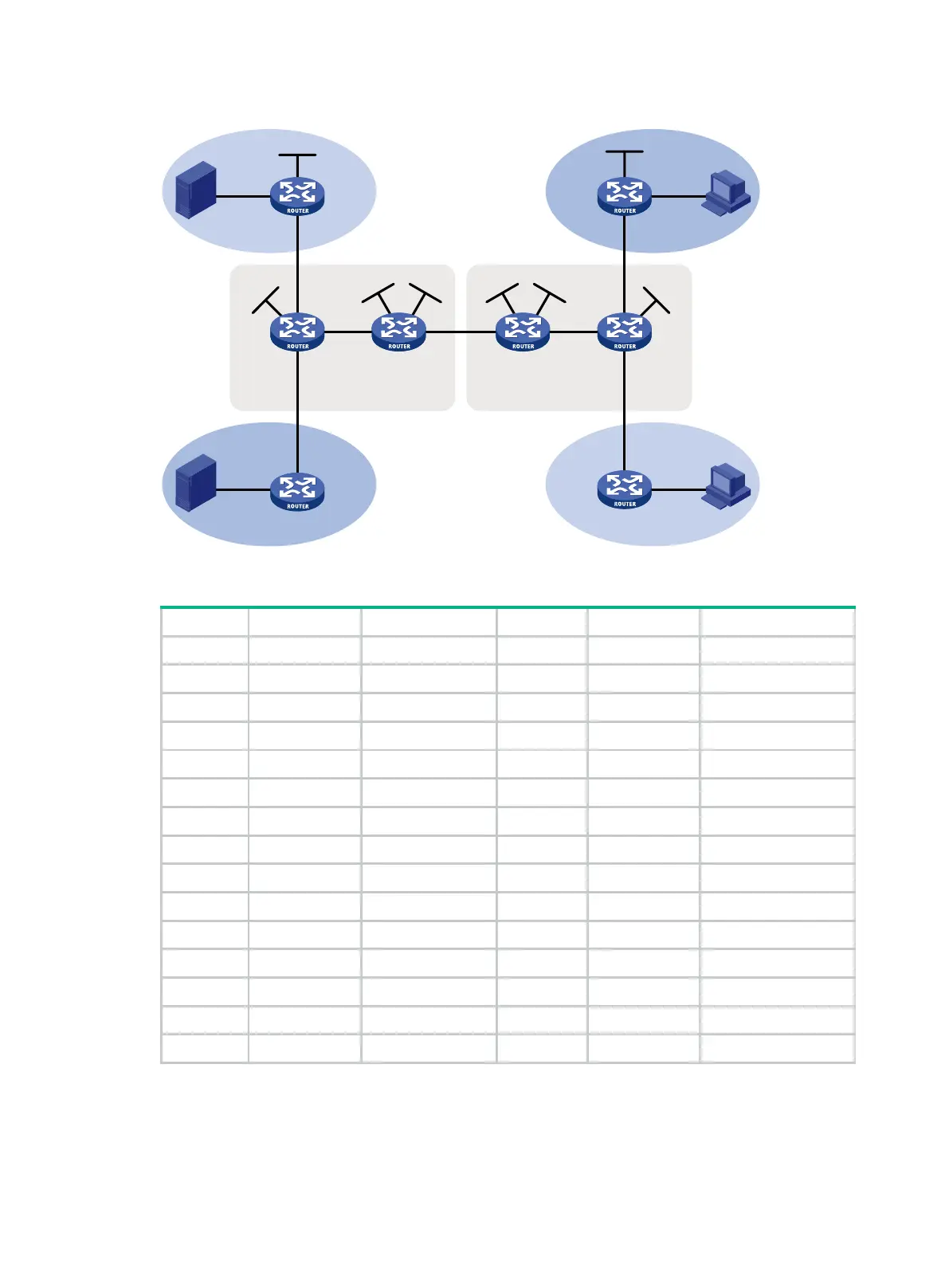

Figure 73 Network diagram
Table 20 Interface and IP address assignment
Device
Interface
IP address
Device
Interface
IP address
S 1
— 10.11.5.2/24 R 1 — 10.11.8.2/24
S 2
— 10.11.6.2/24 R 2 — 10.11.7.2/24
PE 1 GE1/0/1
10.10.1.1/24 PE 3
GE1/0/1
10.10.2.1/24
PE 1 GE1/0/2
10.11.1.1/24 PE 3
GE1/0/2
192.168.1.2/24
PE 1 GE1/0/3
10.11.2.1/24 PE 3
Loop1
1.1.1.3/32
PE 1 Loop1
1.1.1.1/32 PE 3
Loop2
22.22.22.22/32
PE 2 GE1/0/1
10.10.1.2/24 PE 4
GE1/0/1
10.10.2.2/24
PE 2 GE1/0/2
192.168.1.1/24 PE 4
GE1/0/2
10.11.3.1/24
PE 2 Loop1
1.1.1.2/32 PE 4
GE1/0/3
10.11.4.1/32
PE 2 Loop2
11.11.11.11/32 PE 4
Loop1
1.1.1.4/32
CE a1 GE1/0/1
10.11.5.1/24 CE b1
GE1/0/1
10.11.6.1/24
CE a1 GE1/0/2
10.11.1.2/24 CE b1
GE1/0/2
10.11.2.2/24
CE a1 Loop0
2.2.2.2/32 CE b2
GE1/0/1
10.11.8.1/24
CE a2 GE1/0/1
10.11.7.1/24 CE b2
GE1/0/2
10.11.4.2/24
CE a2 GE1/0/2
10.11.3.2/24 CE b2
Loop0
3.3.3.3/32
Configuration procedure
1. Configure PE 1:
# Configure a global router ID, and enable IP multicast routing on the public network.
<PE1> system-view
Loop1
Loop2
Loop1
Loop2
PE 2
ASBR
GE1/0/2
GE1/0/2GE1/0/1
GE1/0/1
GE1/0/1
GE1/0/1
GE1/0/2
GE1/0/3
GE1/0/3
GE1/0/2
GE1/0/2
GE1/0/2
GE1/0/2
GE1/0/2
GE1/0/1
GE1/0/1
GE1/0/1
GE1/0/1
PE 1 PE 4
AS 100 AS 200
CE b1
CE b2CE a1
CE a2
VPN a
VPN a
VPN b
VPN b
Loop0
Loop0
Loop1
Loop1
S 1
S 2
R 1
R 2
PE 3
ASBR
