3. Position the computer on its side and partially open.

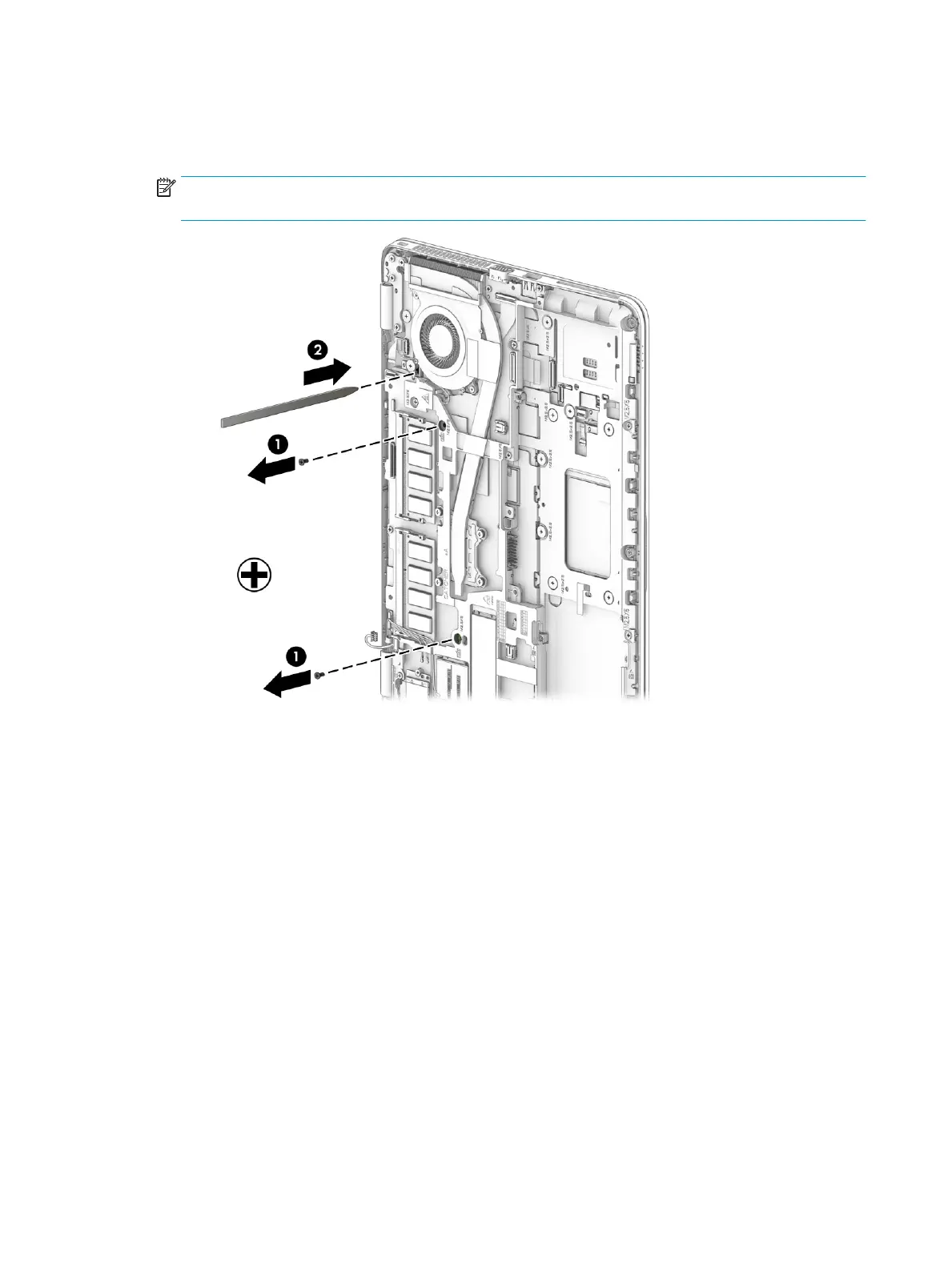

4. Insert a screwdriver or similar thin tool into the hole beside the heat sink/fan assembly, and then press
on the back of the keyboard until it disengages from the computer (2).
NOTE: Cables connect the bottom of the keyboard to the system board. Make sure not to prematurely
pull the keyboard cables out of the system board connectors.
5. Position the computer upright with the front toward you, and then open the computer as far as possible.
6. Slide the keyboard slightly downward, and then lift and rotate the keyboard over onto the palm rest (1).
7. Lift the ZIF connector (2) for the pointing stick cable connector, then and remove the cable from the
connector (3).
8. Lift the ZIF connector (4) for the keyboard backlight cable connector, and then remove the cable from
the connector (5).
9. Lift the ZIF connector (6) for the keyboard cable connector, and then remove the cable from the
connector (7).
40 Chapter 5 Removal and replacement procedures for Customer Self-Repair parts

HP mt43 Specifications

General

Form factor	Clamshell
Product type	Mobile thin client
Product color	Silver
Country of origin	China
Panel type	SVA
LED backlight	Yes
Display diagonal	14 \
Native aspect ratio	16:9
Keyboard layout	QWERTY
Pointing device	Touchpad
Processor cache	2 MB
Processor cores	4
Processor model	PRO A8-9600B
Processor family	AMD PRO A8
Processor frequency	2.4 GHz
Processor cache type	L2
Processor manufacturer	AMD
Processor boost frequency	3.3 GHz
Memory slots	2x SO-DIMM
Internal memory	8 GB
Memory clock speed	2133 MHz
Internal memory type	DDR4-SDRAM
Memory layout (slots x size)	2 x 4 GB
SSD capacity	The Solid State Drive's storage capacity in Gigabytes.
SSD interface	SATA
Storage media	SSD
SSD form factor	M.2
Total storage capacity	128 GB
Compatible memory cards	SD
Number of SSDs installed	1
Discrete graphics card model	Not available
On-board graphics card model	AMD Radeon R5
Speakers manufacturer	Bang & Olufsen
Number of built-in speakers	2
Front camera signal format	720p
Battery capacity	51 Wh
Number of battery cells	3
AC adapter power	45 W
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	4.2
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Charging port type	DC-in jack
USB 2.0 ports quantity	0
Sustainability certificates	ENERGY STAR
Operating system installed	Windows 10 IoT Enterprise
Operating system architecture	64-bit

Weight and Dimensions

Depth	226 mm
Width	338 mm
Height	18.9 mm
Weight	1480 g
