The HD camera module is available using spare part number L28405-001. The microphone module
is available using spare part number L15512-001.

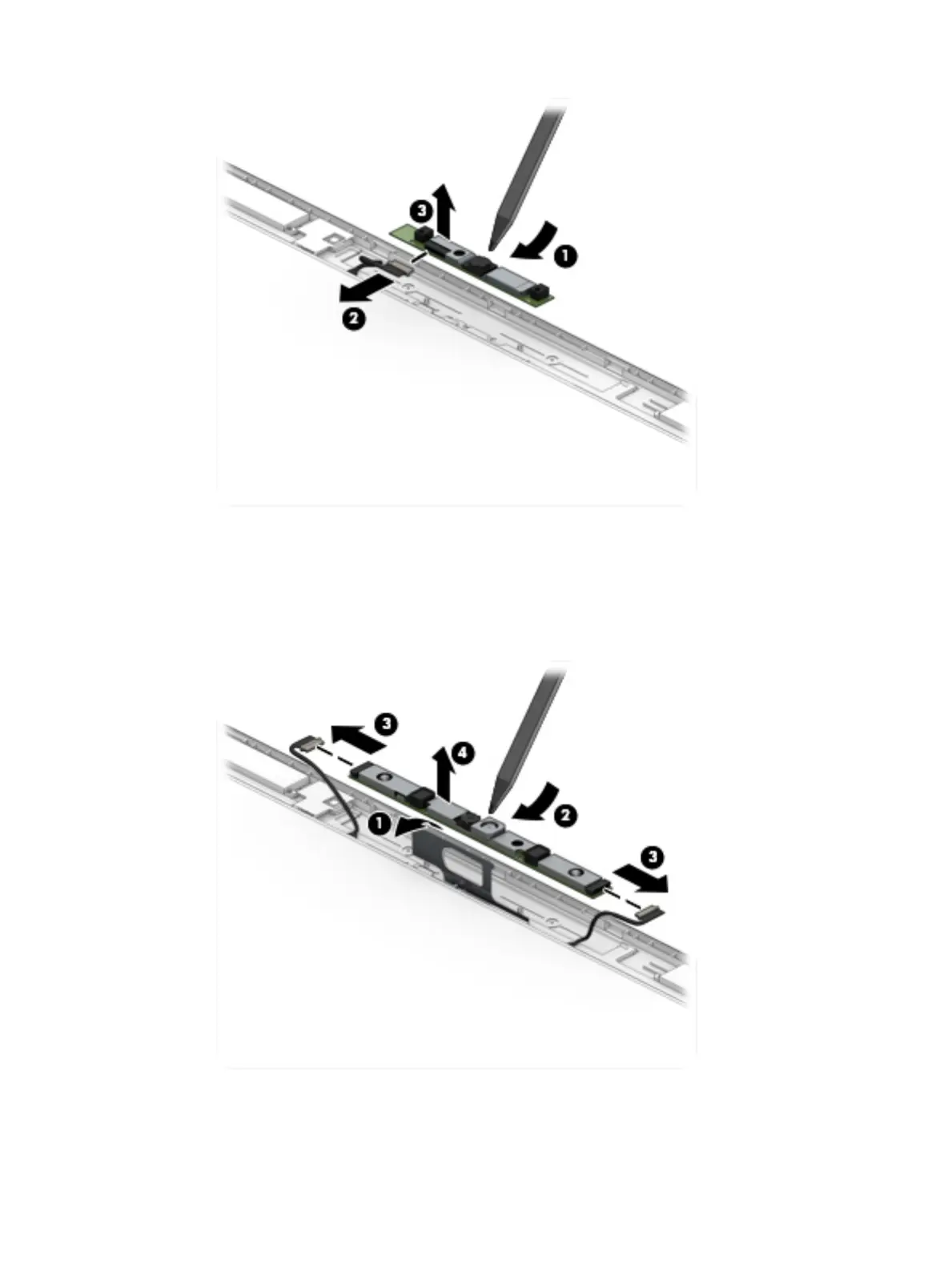

b. IR camera
Remove the tape from atop the module (1), lift upward to disengage the module from the adhesive
on the display enclosure (2), disconnect the cables from the left and right sides of the module (3),
and then remove the camera module from the display (4).
The IR camera module is available using spare part number L28404-001.
70 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
