HP MultiSeat t100 - Thin Client

4. Remove the four screws from the bottom of the hard drive carrier.

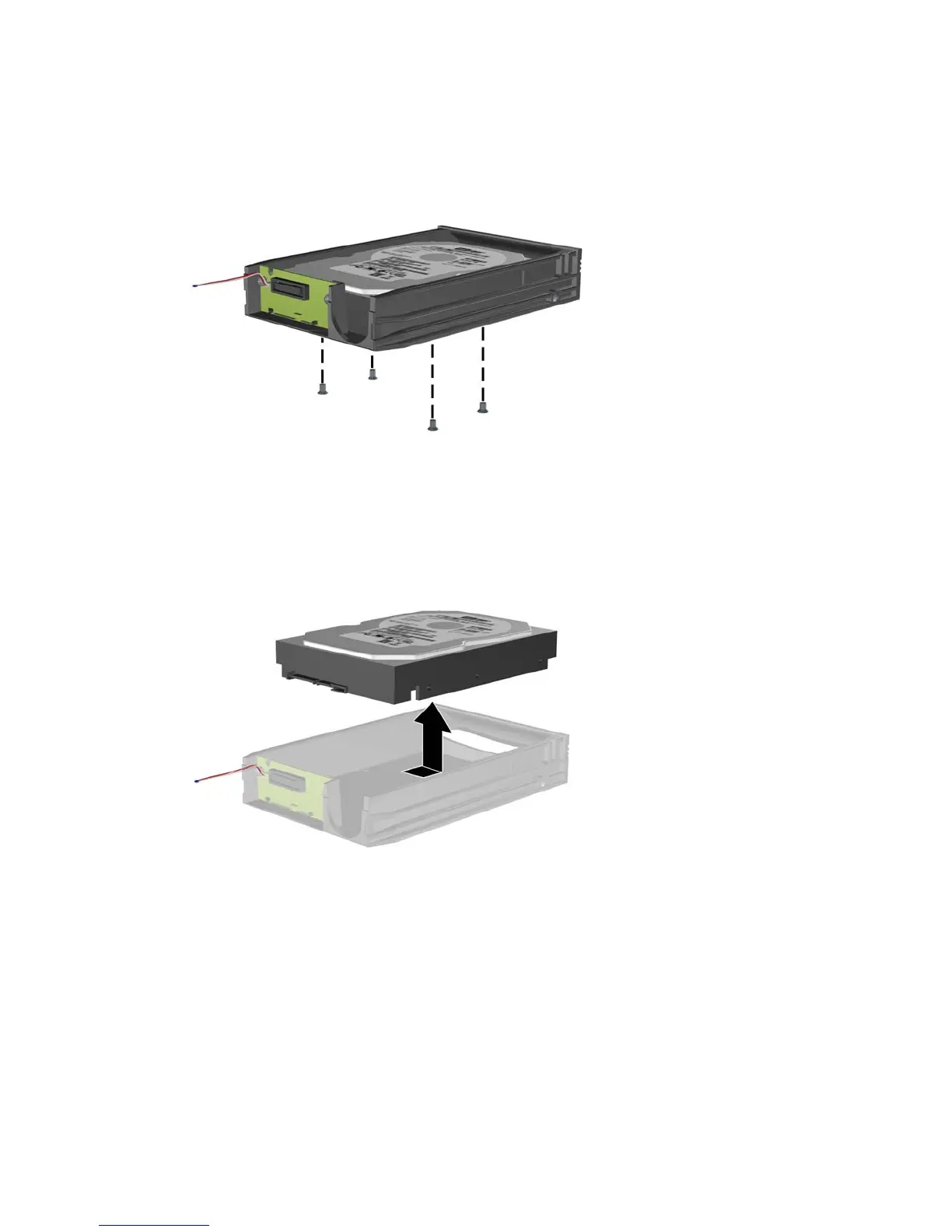

Figure 5-39 Removing the Security Screws
5. Slide the hard drive back to disconnect it from the carrier then lift it up and out of the carrier.
Figure 5-40 Removing the Hard Drive
64 Chapter 5 Removal and Replacement Procedures
