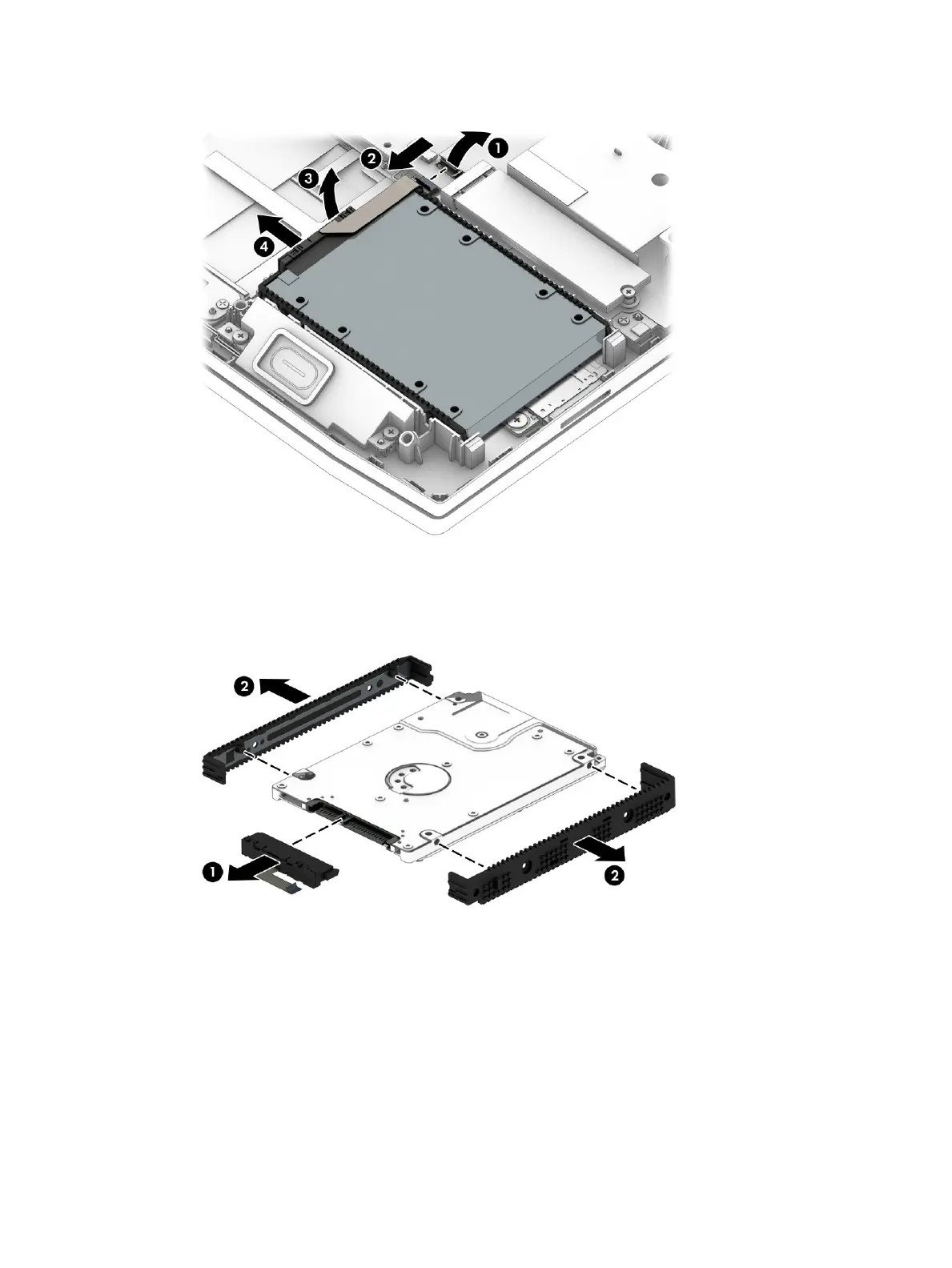

4. Slide the hard drive toward the top of the computer (4), then remove it from the computer.
5. If it is necessary to disassemble the hard drive, perform the following steps:
a. Remove the hard drive cable connector (1) from the hard drive.
b. Slide the two hard drive brackets (2) o the hard drive.
To remove the second hard drive, follow these steps:
1. Open the zero insertion force (ZIF) connector to release the hard drive cable (1) from the system board.
2. Lift the hard drive (2) up.
Component replacement procedures 41
