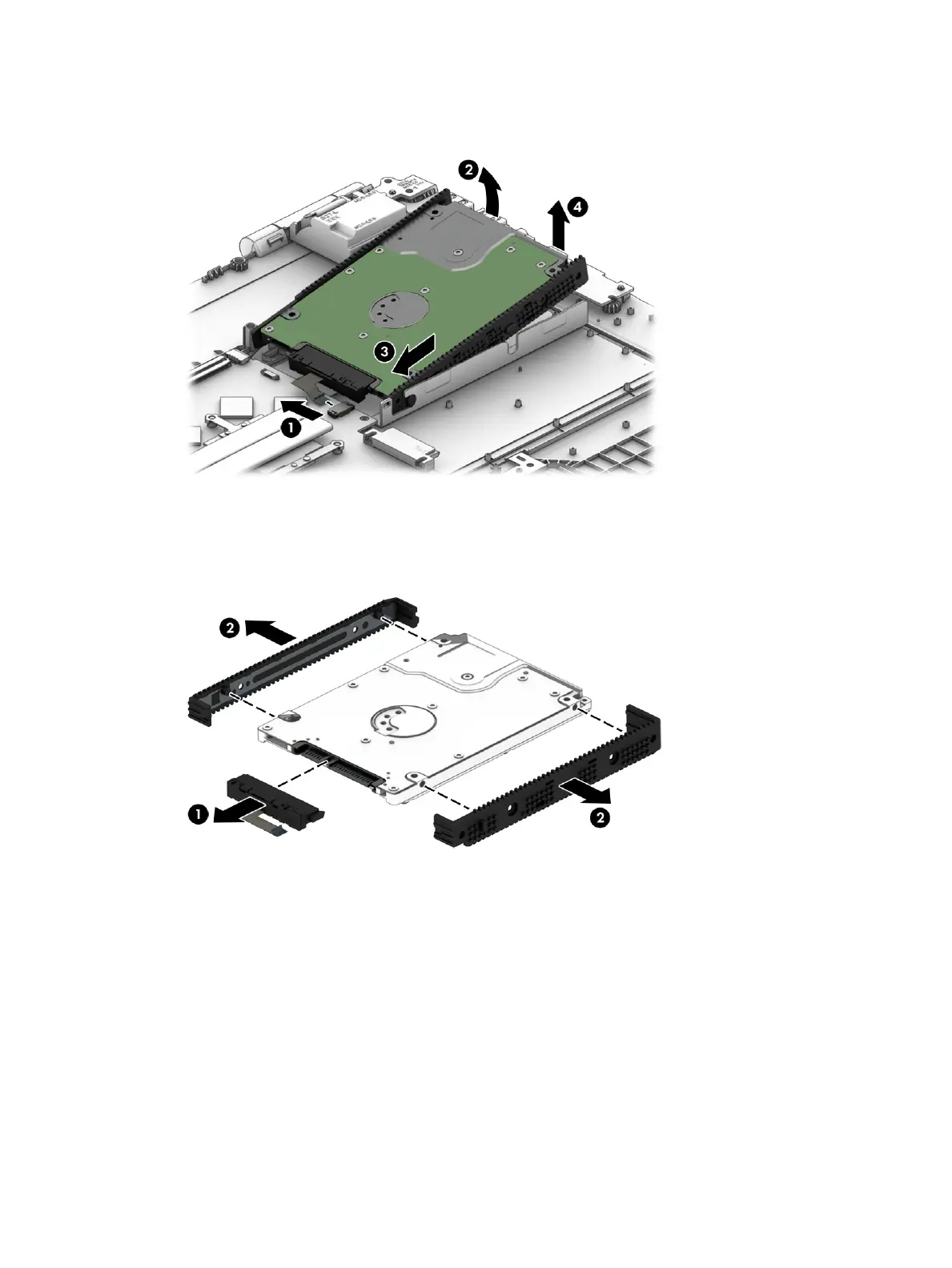

3. Release the hard drive from the notch (3), and then slide the drive (4) forward to remove it from the
computer.
4. If it is necessary to disassemble the hard drive, perform the following steps:
a. Remove the hard drive cable connector (1) from the hard drive.
b. Slide the two hard drive brackets (2) o the hard drive.
Reverse this procedure to reassemble and install the hard drive.
42 Chapter 5 Removal and replacement procedures for Customer Self-Repair parts
