3) Lift the J2 connector from the PCB.
4) Place the new component on the PCB. Be sure that it matches the PCB footprint.
5) Solder the new component.
DP connector J3

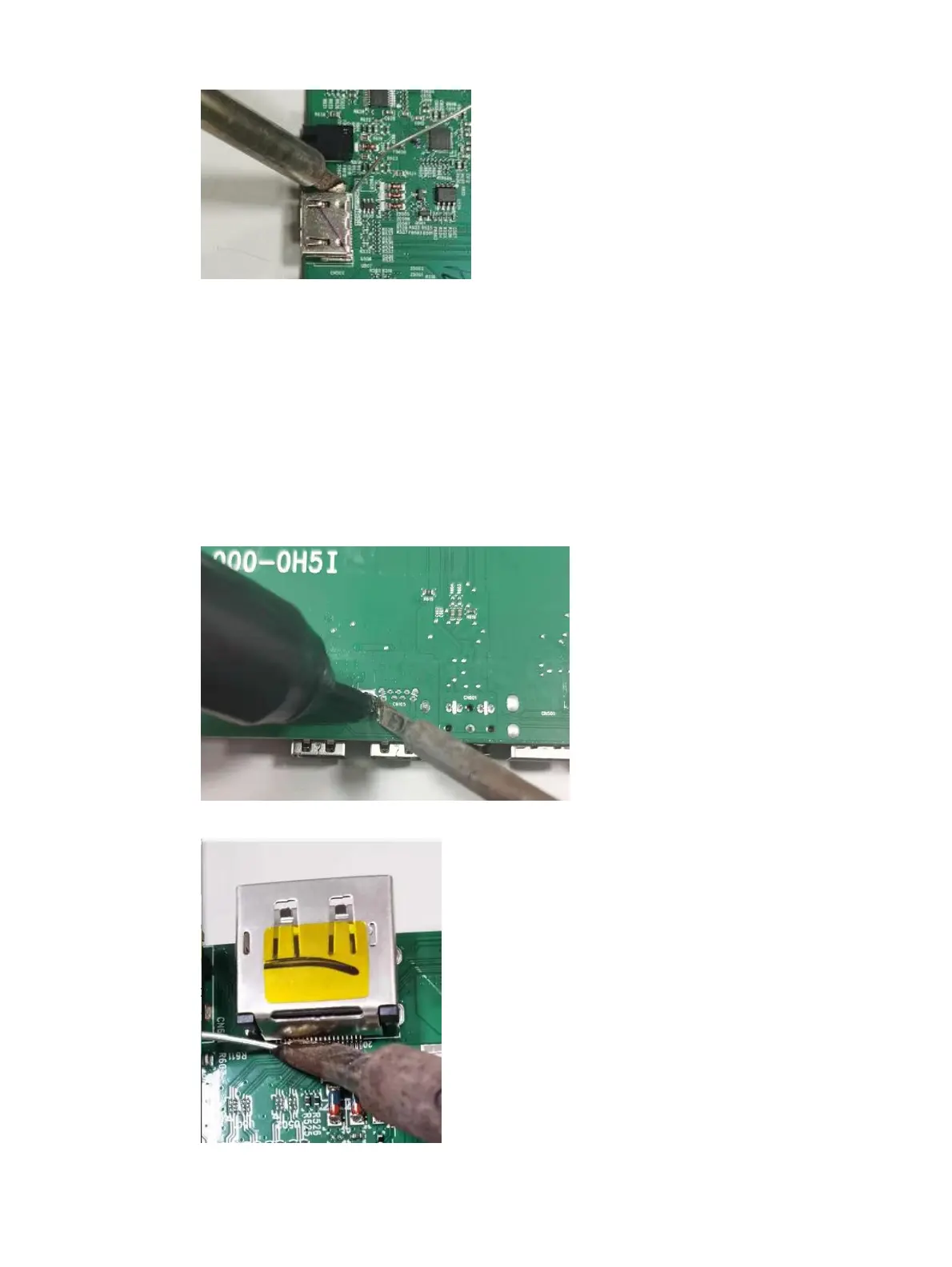

Repair the DP connector:
1) Use a soldering iron and a desoldering pump to remove as much solder as possible from the pin.
2) Use a hot air gun to melt the solder on the pins.
3) Lift the J3 connector from the PCB.
