21
4) Place the new component on the PCB. Be sure that it matches the PCB footprint.
5) Solder the new component.
TYPE A J4,J5

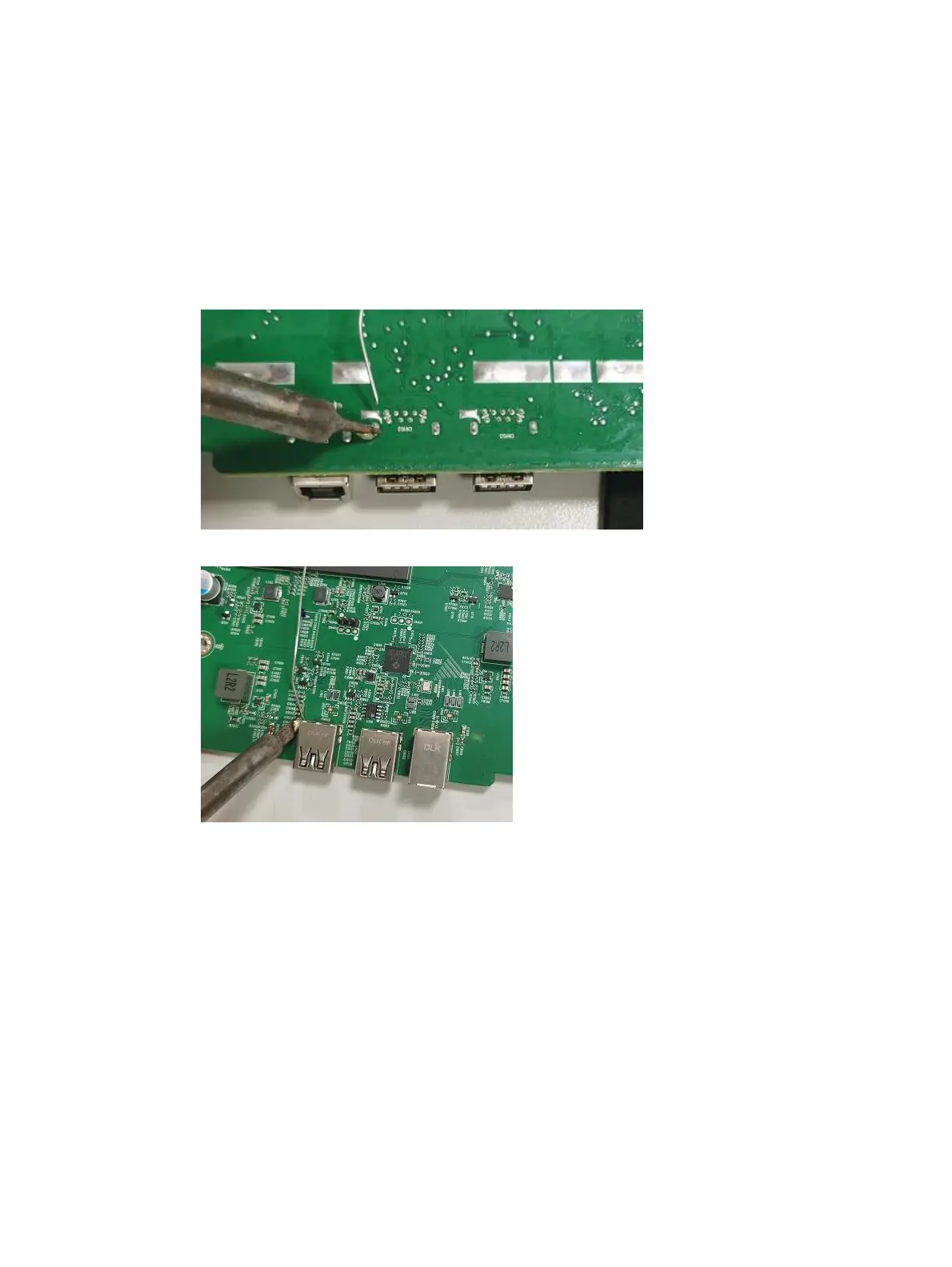

Repair the TYPE A connector:
6) Use a soldering iron and a desoldering pump to remove as much solder as possible from the pin.
7) Use a hot air gun to melt the solder on the pins.
8) Lift the J4 connector from the PCB.
9) Place the new component on the PCB. Be sure that it matches the PCB footprint.
10) Solder the new component.
TYPE B J6
Repair the TYPE B connector:
1) Use a hot air gun to melt the solder on the pins. Pin solder with soldering iron and absorber. You
can gently push down with the soldering iron once everything is molten to move the J6 out of the
through holes.
