HP OMEN 27qs - Page 16

14

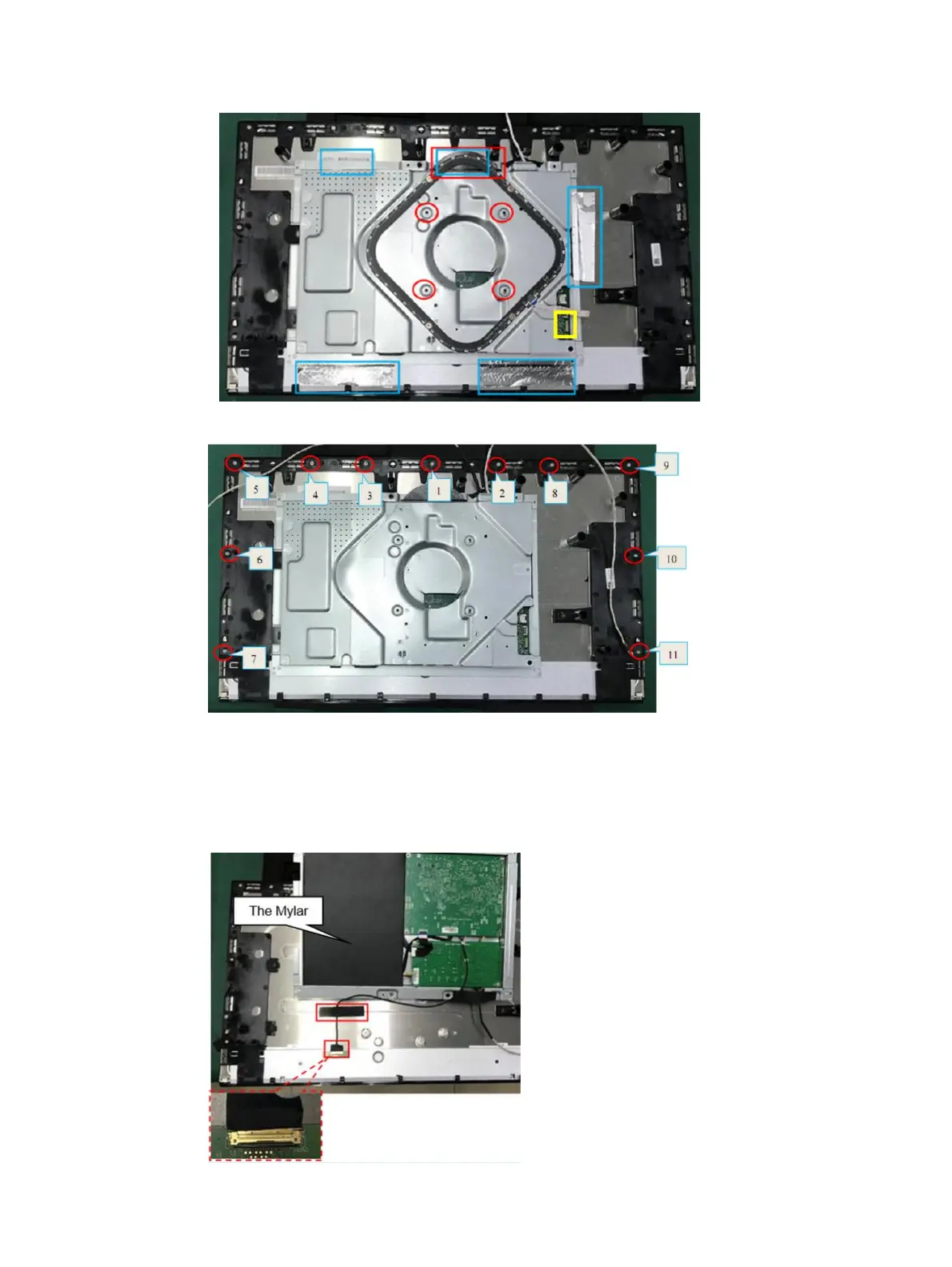

5) Remove the Connector board and disconnect the pins. Take off the tapes.
6) Remove the screws to remove the middle frame and the panel.
7) Remove the Mylar.
8) Disassemble 11 screws from the boards.
9) Disassemble all the boards from housing.
10) Disconnect all the wires from the board.
