USB UP connector CN105
Repair the USB up connector:

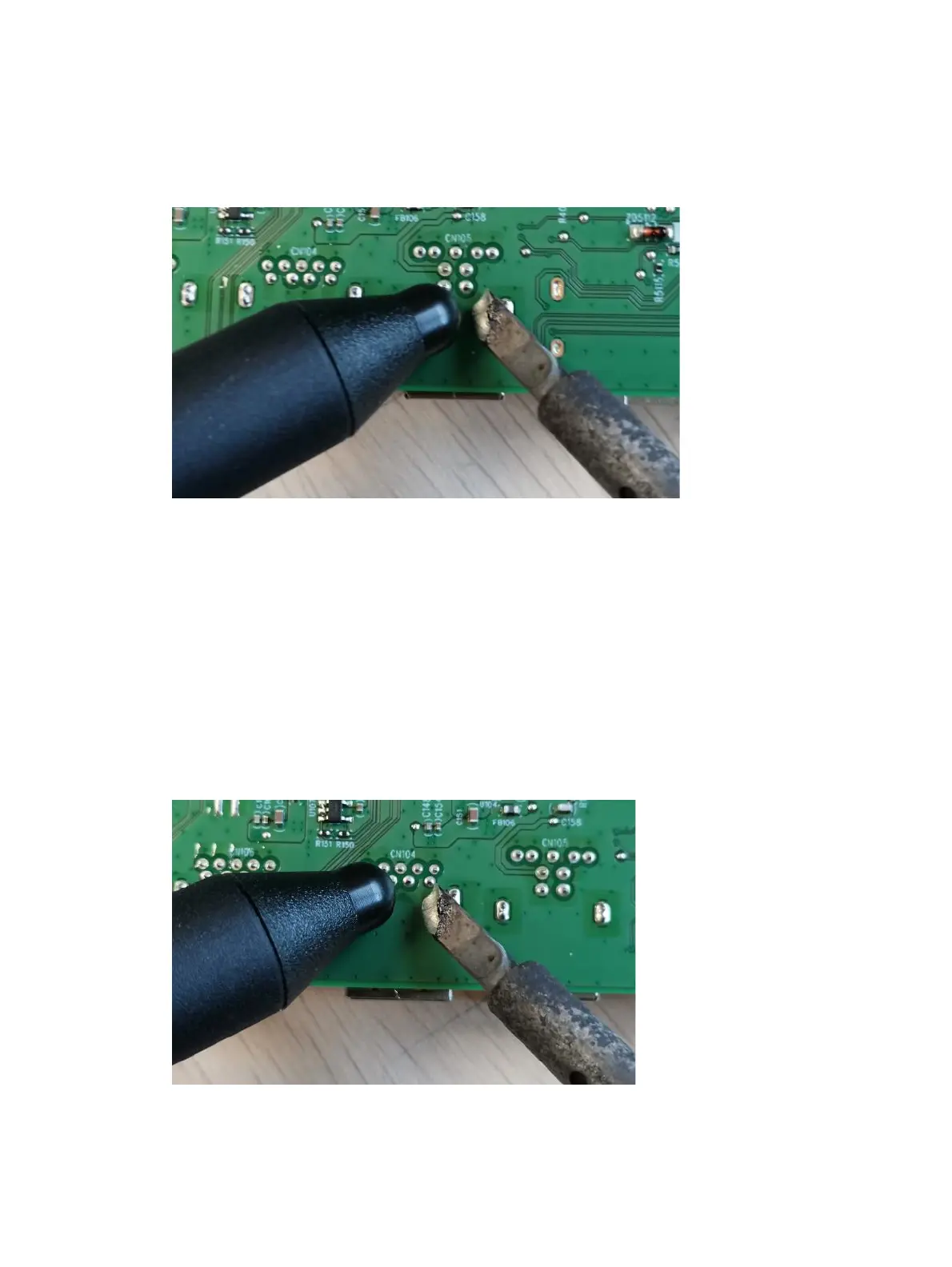

1） Use a soldering iron and a de-soldering pump to remove as much solder as possible from the pin.
2) Lift the USB up connector from the circuit board.
3) Place the new component on the circuit board. Be sure that it matches the circuit board footprint.
4) Solder the new component.
USB1 connector CN104
Repair the USB1 connector:
1） Use a soldering iron and a de-soldering pump to remove as much solder as possible from the pin.
2) Lift the USB1 connector from the circuit board.
3) Place the new component on the circuit board. Be sure that it matches the circuit board footprint.
4) Solder the new component.
