Connector repair
This procedure includes HDMI, DisplayPort, Phone Jack and USB connectors.
The connectors are on the main board (board part number CBPR2RAH1Q4).
The connector identifiers are as follows:
Connector
Location
HDMI
CN5002
HDMI
CN5001
DP
CN5101
USB UP
CN105
USB 1
CN104
USB 2
CN106
Phone Jack
CN6001
Before repairing connectors, follow these steps:
▲ Prepare the monitor for disassembly. See Preparation for disassembly on page 11.

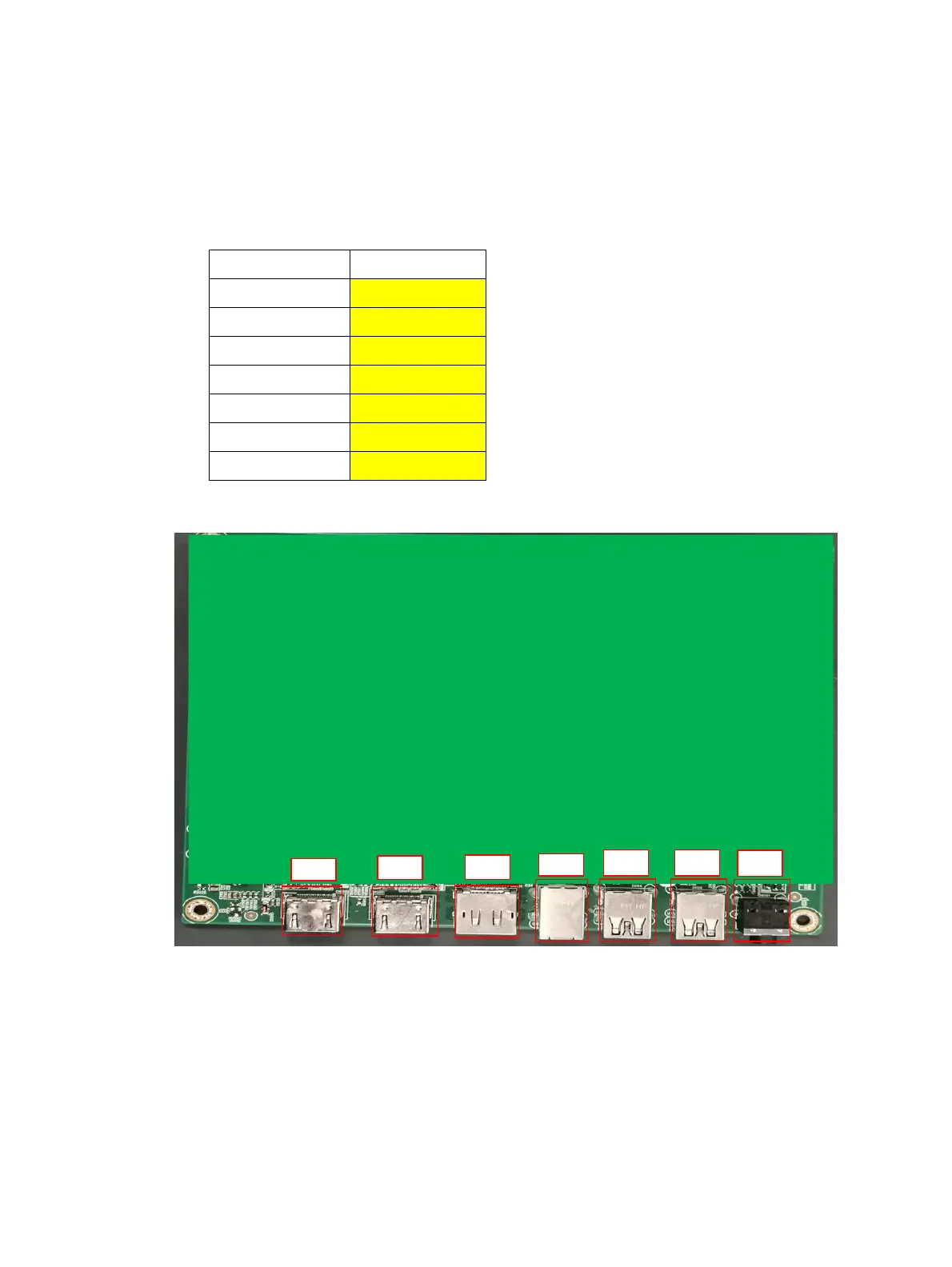

Main Board
CN5002
CN5001
CN5101
CN105
CN104
CN106
CN6001
