HP OMEN 27s - Connector Repair Procedures; Connector Identification and Preparation

17
Connector repair
This procedure includes HDMI, DisplayPort, Phone Jack and USB connectors.
The connectors are on the main board (board part number CBPR2R5H1Q3).

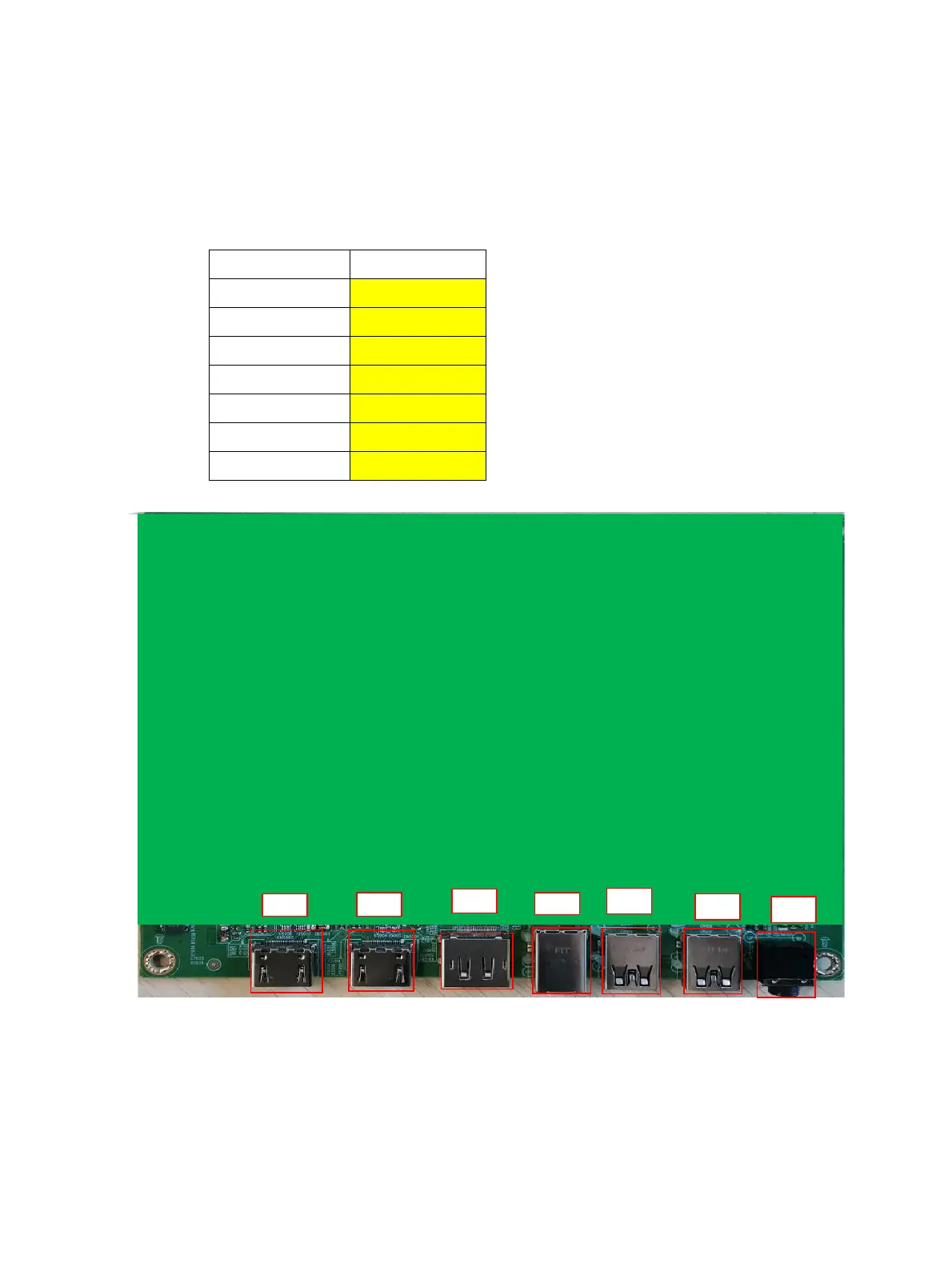

The connector identifiers are as follows:
Connector
Location
HDMI 1
CN5002
HDMI 2
CN5001
DisplayPort
CN5101
USB up
CN105
USB 3.0 A 1
CN104
USB 3.0 A 2
CN106
PHONE JACK
CN6001
Before repairing connectors, follow these steps:
▲ Prepare the monitor for disassembly. See Preparation for disassembly on page 11.
Main Board
CN5002
CN5001
CN5101
CN105
CN104
CN106
CN6001
