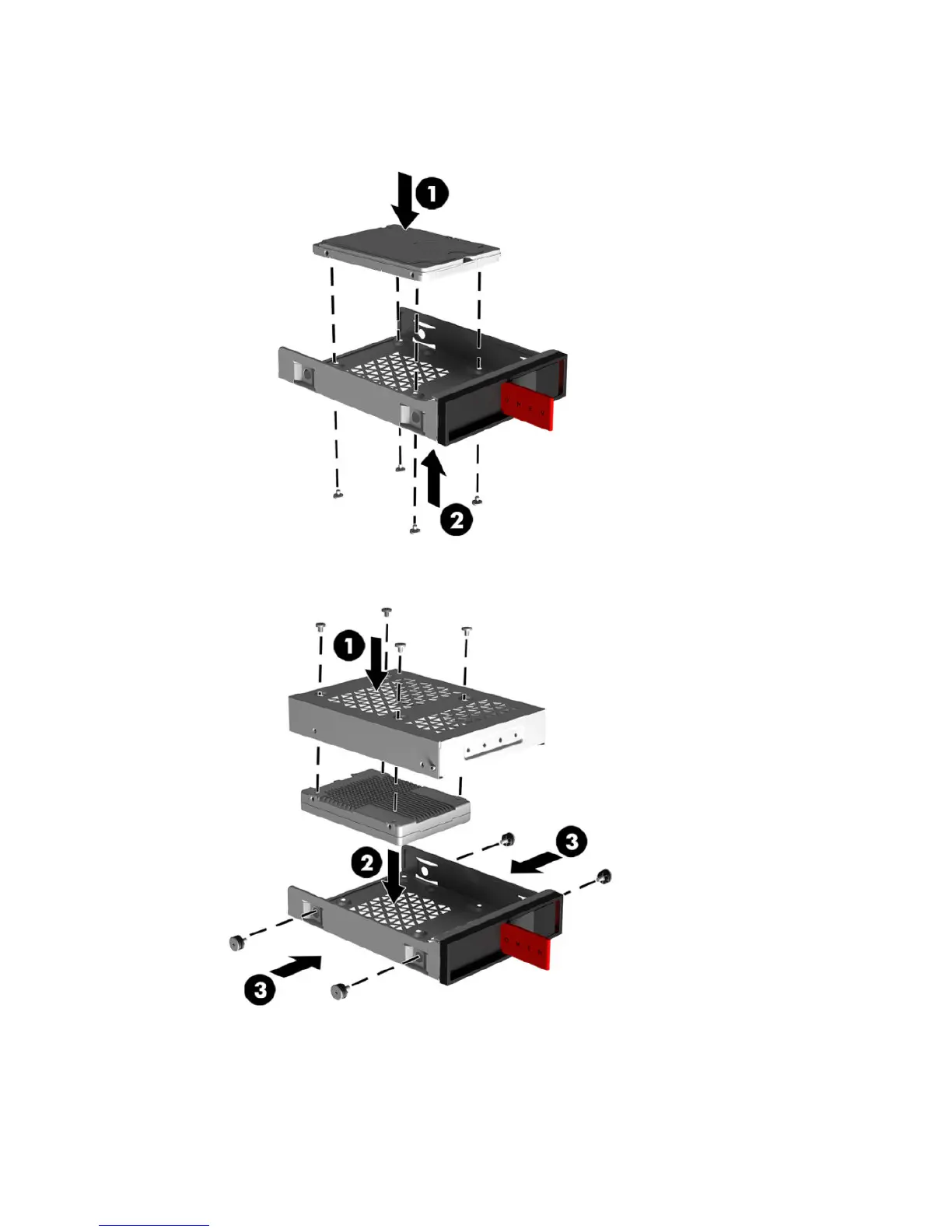

b. 2.5-inch solid-state drive: Insert the drive into the drive cage (1), and then install four mounting

screws (2).

c. U.2 drive: Insert the drive into the adapter bracket and secure with four screws (1). Insert the

adapter bracket assembly into the drive cage (2), and then install four mounting screws (3).

12 Chapter 2 Hardware upgrades
