Bottom cover
Table 5-1 Bottom cover description and part number
Description Spare part number
Bottom cover (includes thermal pad) L57010-001
Before removing the bottom cover, follow this step:
▲ Prepare the computer for disassembly (Preparation for disassembly on page 26).

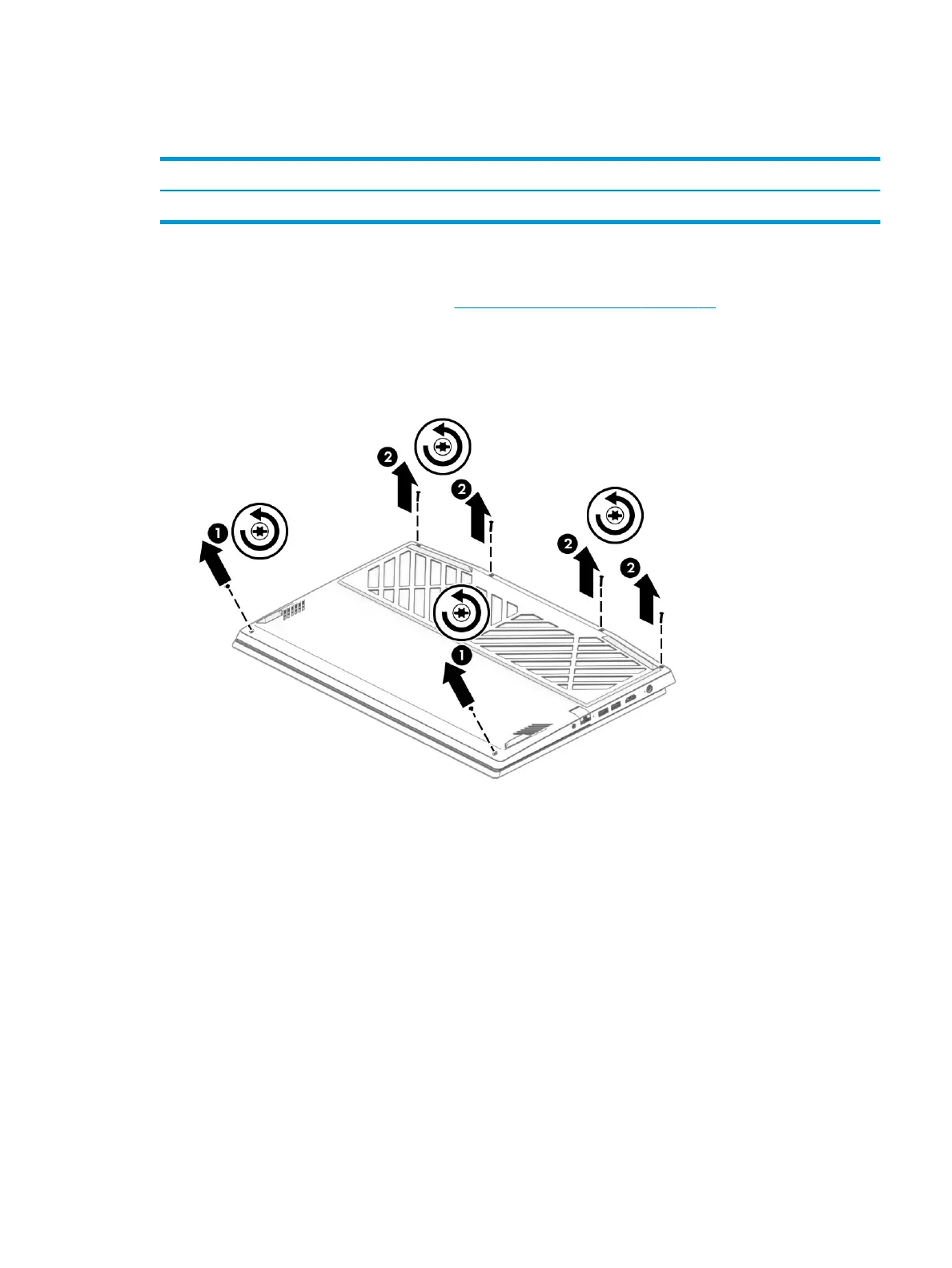

Remove the bottom cover:
1. Loosen the two Torx T6 2.0 × 2.0 screws (1) from the bottom corners of the bottom cover.
2. Loosen the four Torx T6 2.5 × 4.0 screws (2) from along the top edge of the bottom cover.
3. At the gap in the hinge, use a tool to loosen the bottom cover from the computer (1).
Component replacement procedures 27
