HP OmniBook XE4500 - Disassembly Flowchart

HP Omnibook XE4100/XE4500 Removal and Replacement 2-3
Disassembly Flowchart

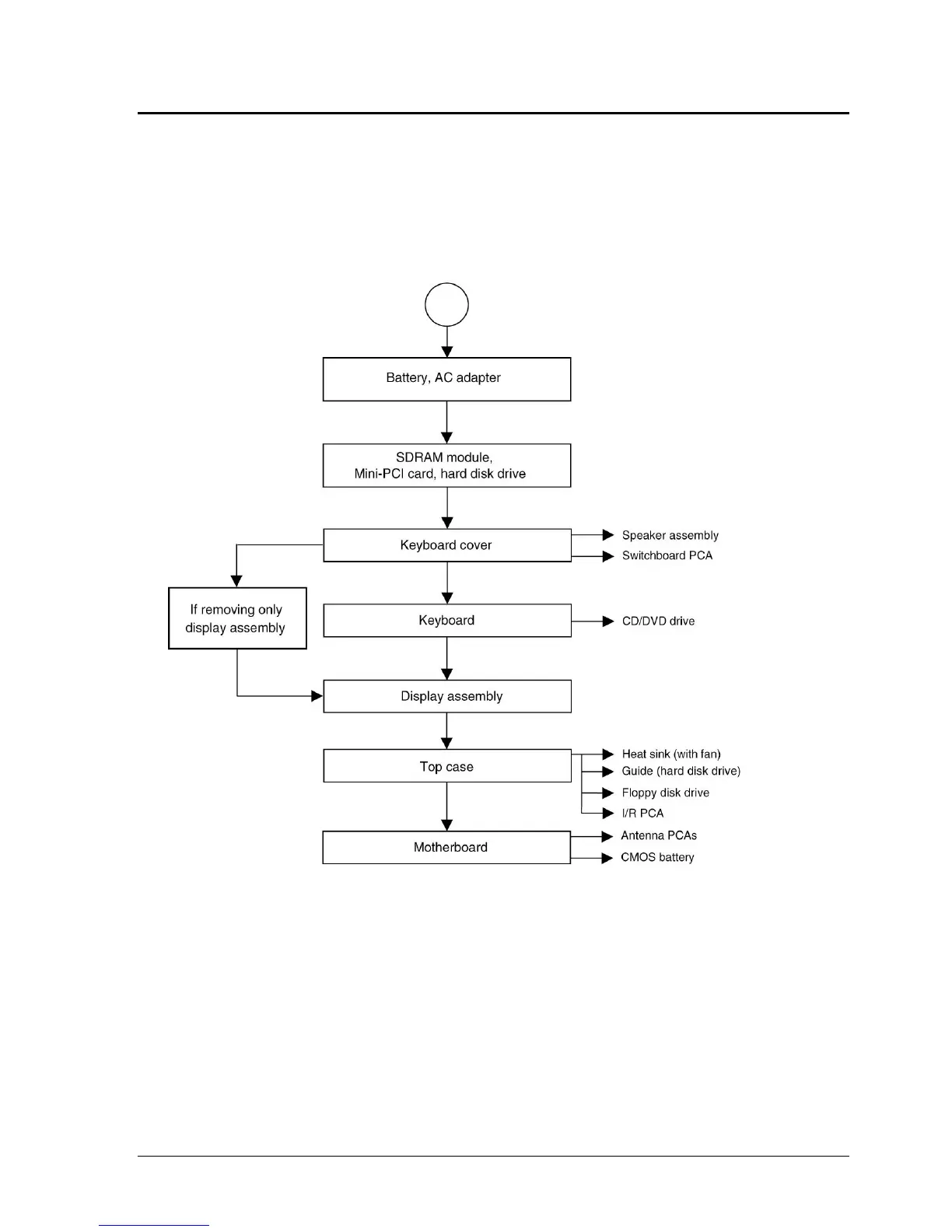

The following diagram shows the general “path” you will use when disassembling the notebook to
access any particular component.
Figure 2-1. Disassembly Flow
