Page #5 background imageLoading...
Page #5 background image

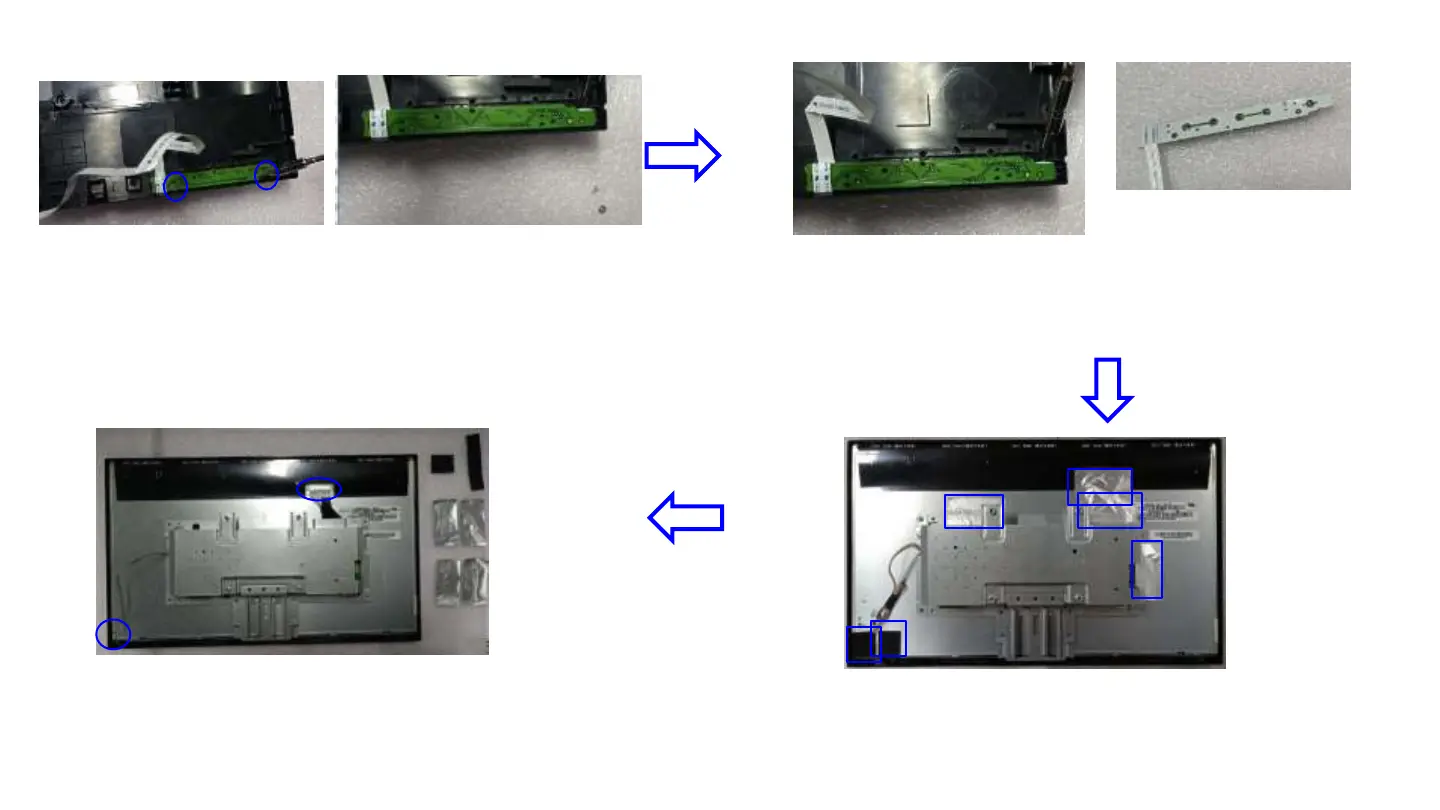

Step 9. Unscrew 2 screws (T2*4).
Step 10. Take out keypad from right side.
Step 11. Peel off all Al foils and Tapes. Step 12. Disconnect the terminals.

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HP P204v and is the answer not in the manual?

HP P204v Specifications

General IconGeneral
3DNo
Panel typeTN
Color gamut72 %
Pixel pitch0.27 x 0.27 mm
Screen shapeFlat
Display diagonal19.5 \
Display resolution1600 x 900 pixels
Display technologyLED
Native aspect ratio16:9
Maximum refresh rate60 Hz
Viewing angle, vertical50 °
Contrast ratio (typical)600:1
Display number of colors16.78 million colors
Viewing angle, horizontal90 °
Display brightness (typical)200 cd/m²
Supported graphics resolutions640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 800, 1366 x 768, 1440 x 900 (WXGA+), 1600 x 900
HP segmentBusiness
NVIDIA G-SYNC-
Depth48.7 mm
Width462.6 mm
Height278.7 mm
Weight2810 g
AC adapter includedYes
Product colorBlack
Country of originChina
Sustainability certificatesEPEAT Gold, ENERGY STAR
HDMI version1.4
DisplayPorts quantity0
Tilt angle range-5 - 25 °
Panel mounting interface100 x 100 mm
AC input voltage100 - 240 V
Power consumption (max)16 W
Power consumption (standby)0.3 W
Power consumption (typical)15 W
Operating temperature (T-T)5 - 35 °C
Operating relative humidity (H-H)20 - 80 %
Cables includedAC, VGA
Package depth136 mm
Package width543 mm
Package height349 mm
Package weight4220 g
Harmonized System (HS) code85285210
Weight and Dimensions IconWeight and Dimensions
Depth (with stand)190 mm
Height (with stand)353.6 mm
Weight (without stand)- g
