Connector board
Description Spare part number
Connector board (includes memory card reader and USB port; does not include cable) 933475-001
NOTE: The connector board cable is available using spare part number 933466-001.
Before removing the connector board, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet, and
then unplugging the AC adapter from the computer.
4. Remove the optical drive (see Optical drive on page 24).
5. Remove the bottom cover (see Bottom cover on page 25).
6. Remove the battery (see Battery on page 27).

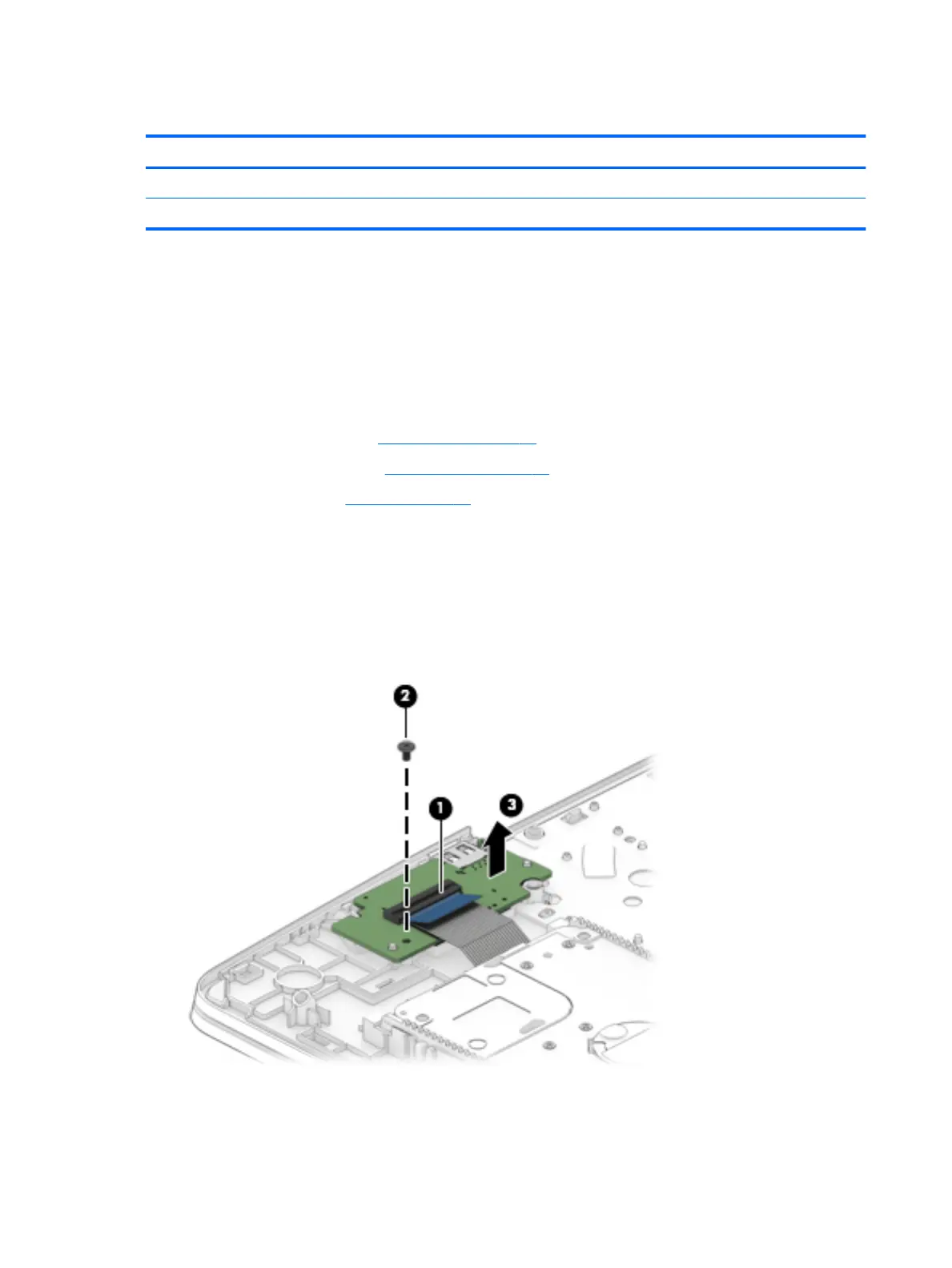

Remove the connector board:
1. Release the ZIF connector (1) to which connector board cable is connected, and then disconnect
the connector board cable from the connector board.
2. Remove the Phillips PM2.0×4.2 screw (2) that secures the connector board to the keyboard/top cover.
3. Remove the connector board (3).
Reverse this procedure to install the connector board.
32 Chapter 5 Removal and replacement procedures
