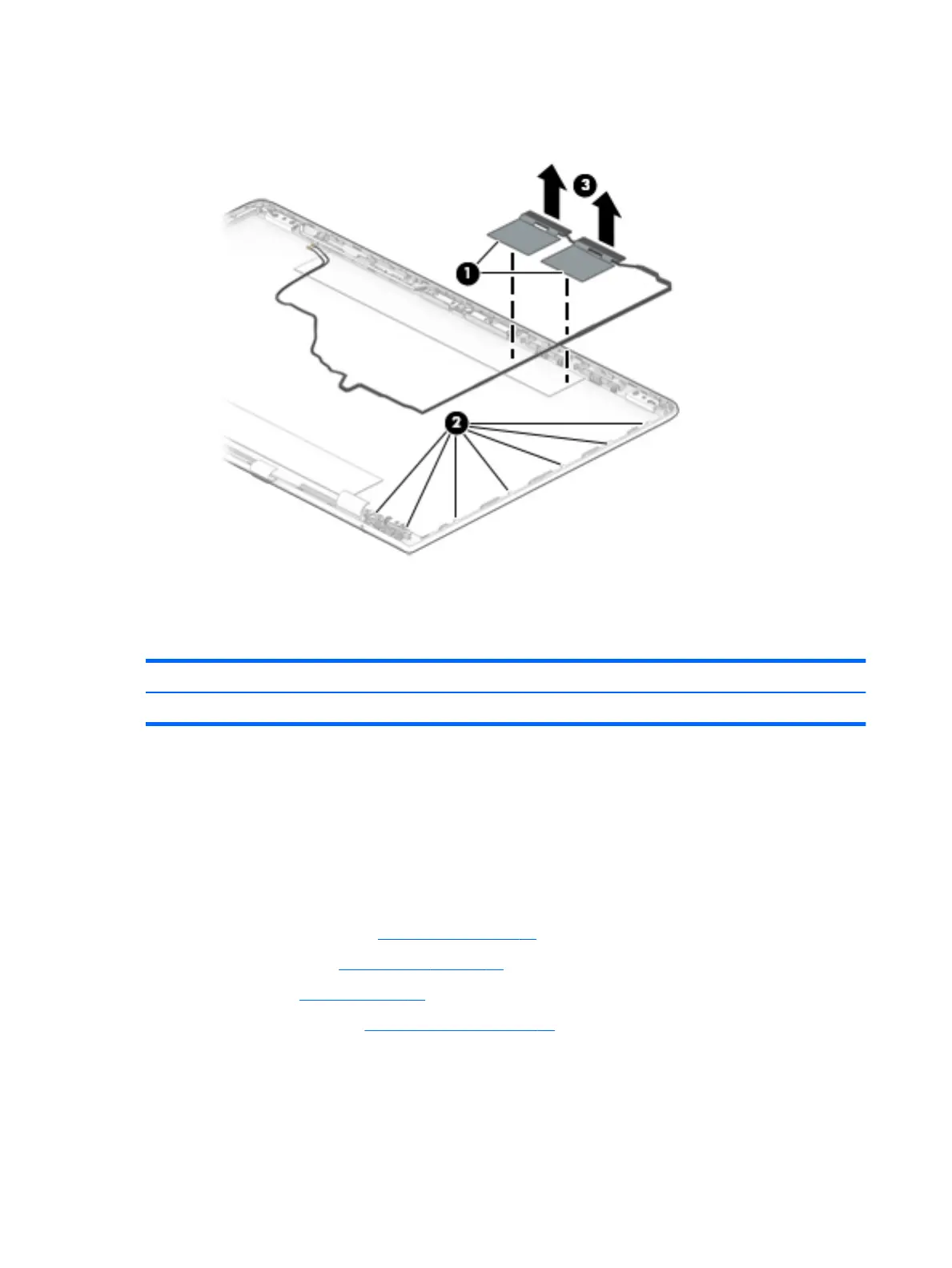

f. Remove the wireless antenna cables and transceivers (3).
The wireless antenna cables and transceivers are available using spare part number 933461-001.
Reverse this procedure to reassemble and install the display assembly.
Power connector cable
Description Spare part number
Power connector cable 810327-006
Before removing the power connector cable, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet, and
then unplugging the AC adapter from the computer.
4. Remove the optical drive (see Optical drive on page 24), and then remove the following components:
a. Bottom cover (see Bottom cover on page 25)
b. Battery (see Battery on page 27)
c. Display assembly (see Display assembly on page 46)
Remove the power connector cable:
1. Disconnect the power connector cable (1) from the system board.
2. Release the power connector cable from the retention clips (2) and routing channel built into
the keyboard/top cover and right speaker.
54 Chapter 5 Removal and replacement procedures
