f. Remove the display panel cable (3).
The display panel cable is available using spare part number 933465-001.
14. If it is necessary to replace the wireless antenna cables and transceivers:
a. Remove the display bezel.
b. Remove the display panel.
c. Remove the display hinges.

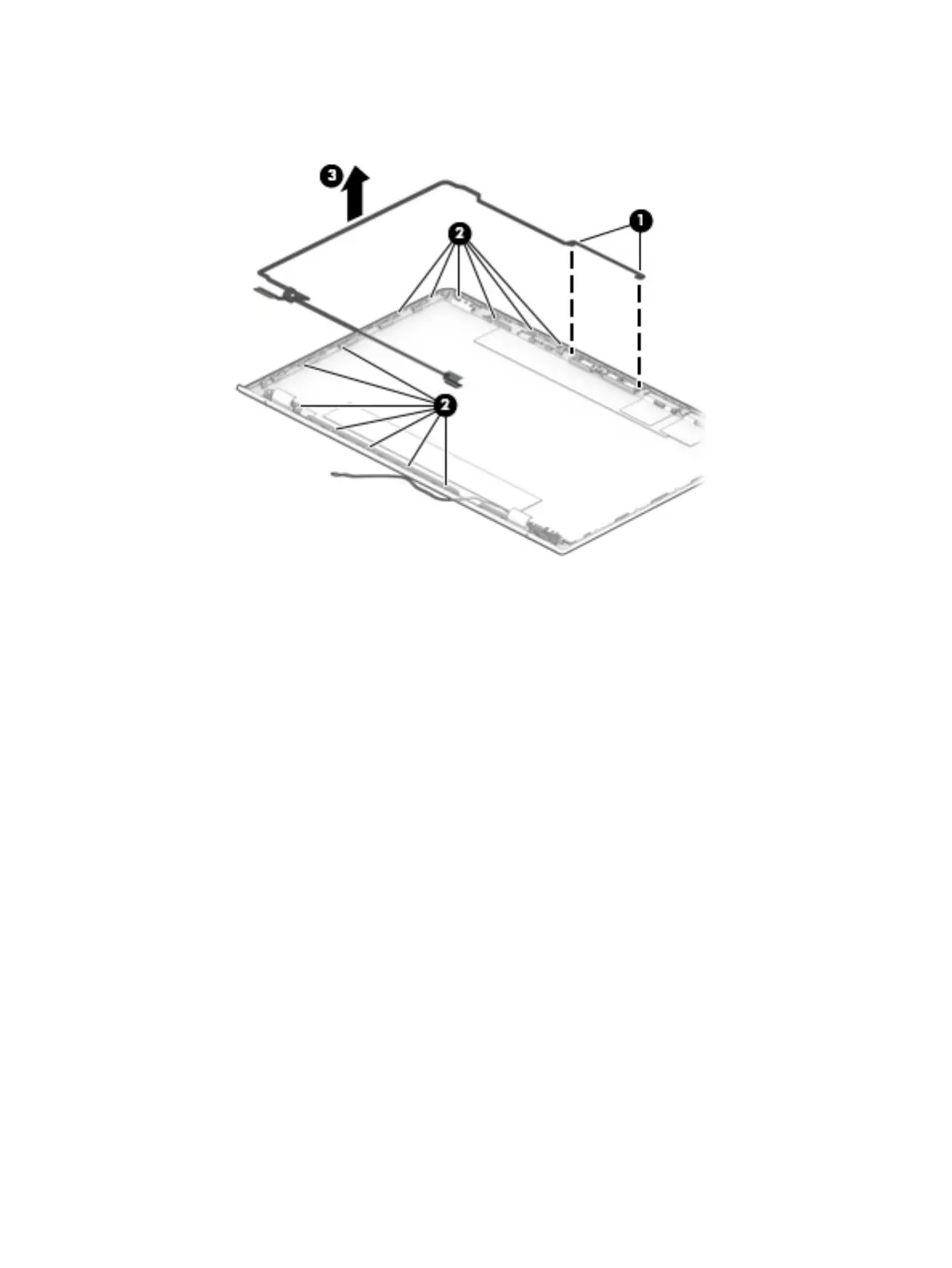

d. Detach the wireless antenna transceivers (1) from the display back cover. (The wireless antenna
transceivers are attached to the display back cover with double-sided adhesive.)
e. Release the wireless antenna cables from the retention clips (2) built into the right and bottom
edges of the display back cover.
Component replacement procedures 53
