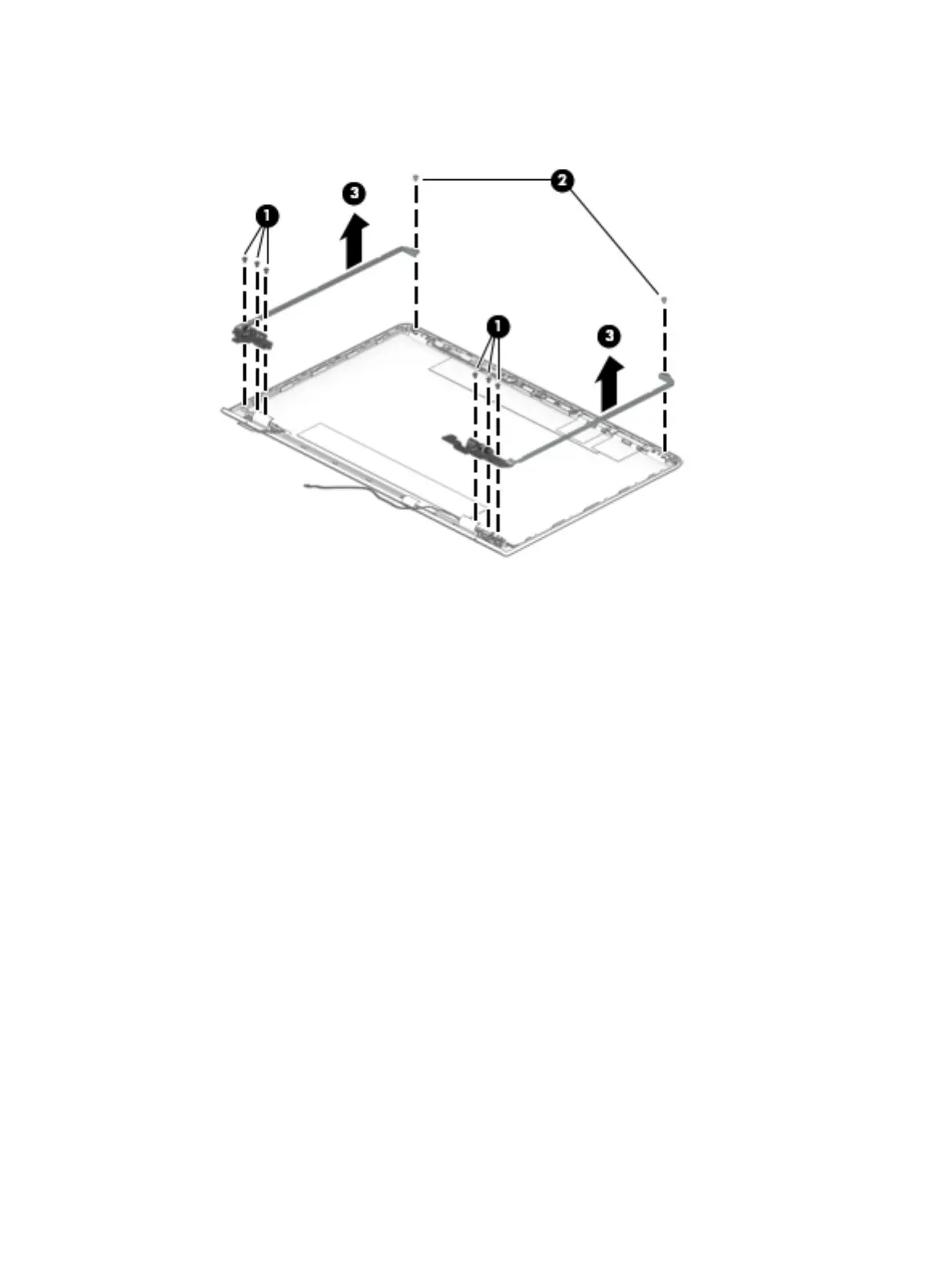

e. Remove the display hinges (3).
The display hinges are available using spare part number 933474-001.
13. If it is necessary to replace the display panel cable:
a. Remove the display bezel.
b. Remove the display panel.
c. Remove the display hinges.
d. Disconnect the display panel cable (1) from the webcam/microphone module.
e. Release the display panel cable from the retention clips (2) and routing channel built into the top,
left, and bottom edges of the display back cover.
52 Chapter 5 Removal and replacement procedures
