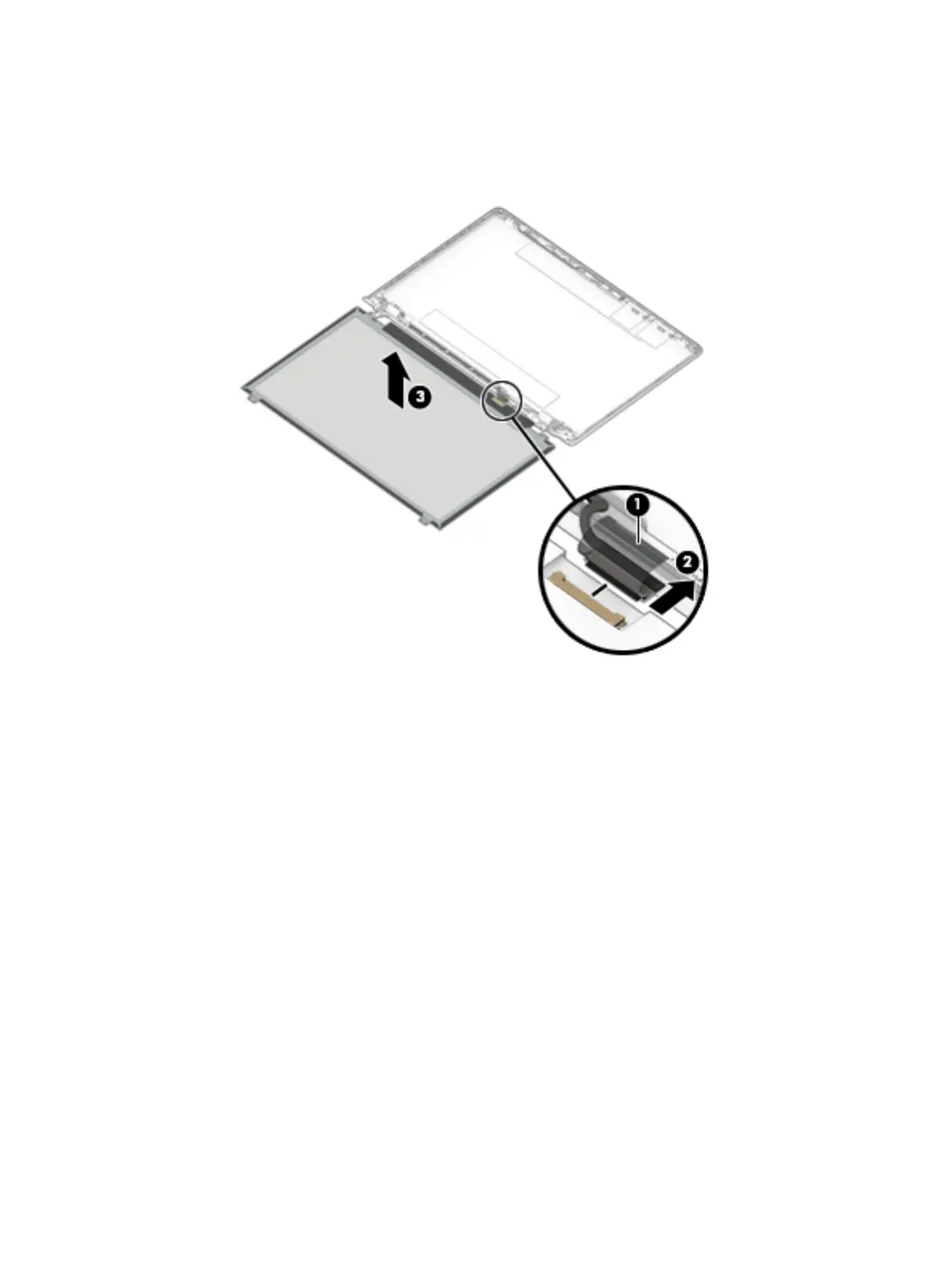

f. Remove the display panel (3).
The display panel is available using spare part numbers 798926-013 (17.3-in, FHD, WLED,
AntiGlare (1920×1080), UWVA, f-at (4.0-mm), eDP display panel) and 851051-007 (17.3-in, HD+,
WLED, BrightView (1600×900), SVA, f-at (4.0-mm), eDP display panel).
12. If it is necessary to replace the display hinges:
a. Remove the display bezel.
b. Remove the display panel.
c. Remove the two Phillips PM2.0×2.8 screws (1) that secure the hinges to the display back cover.
d. Remove the six Phillips PM2.5×4.8 screws (2) that secure the hinges to the display back cover.
Component replacement procedures 51
