HP Pavilion 17-AR050WM

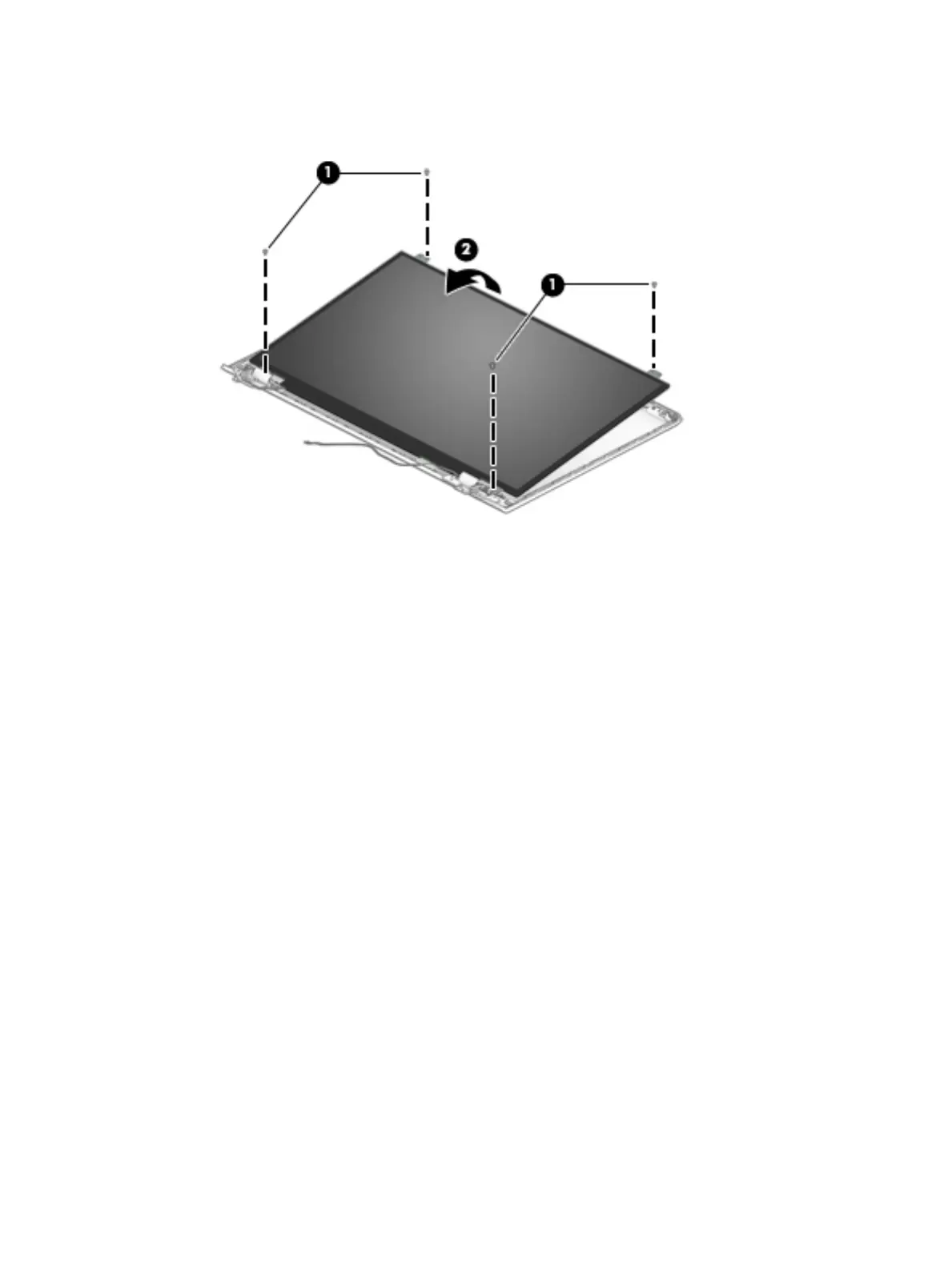

c. Swing the top edge of the display panel (2) up and forward until the display panel rests upside
down in front of the display back cover.
d. Release the adhesive support strip (1) that secures the display panel cable connector to the display
panel.
e. Disconnect the display panel cable (2) from the display panel.
50 Chapter 5 Removal and replacement procedures
