14, Disassemble DDR

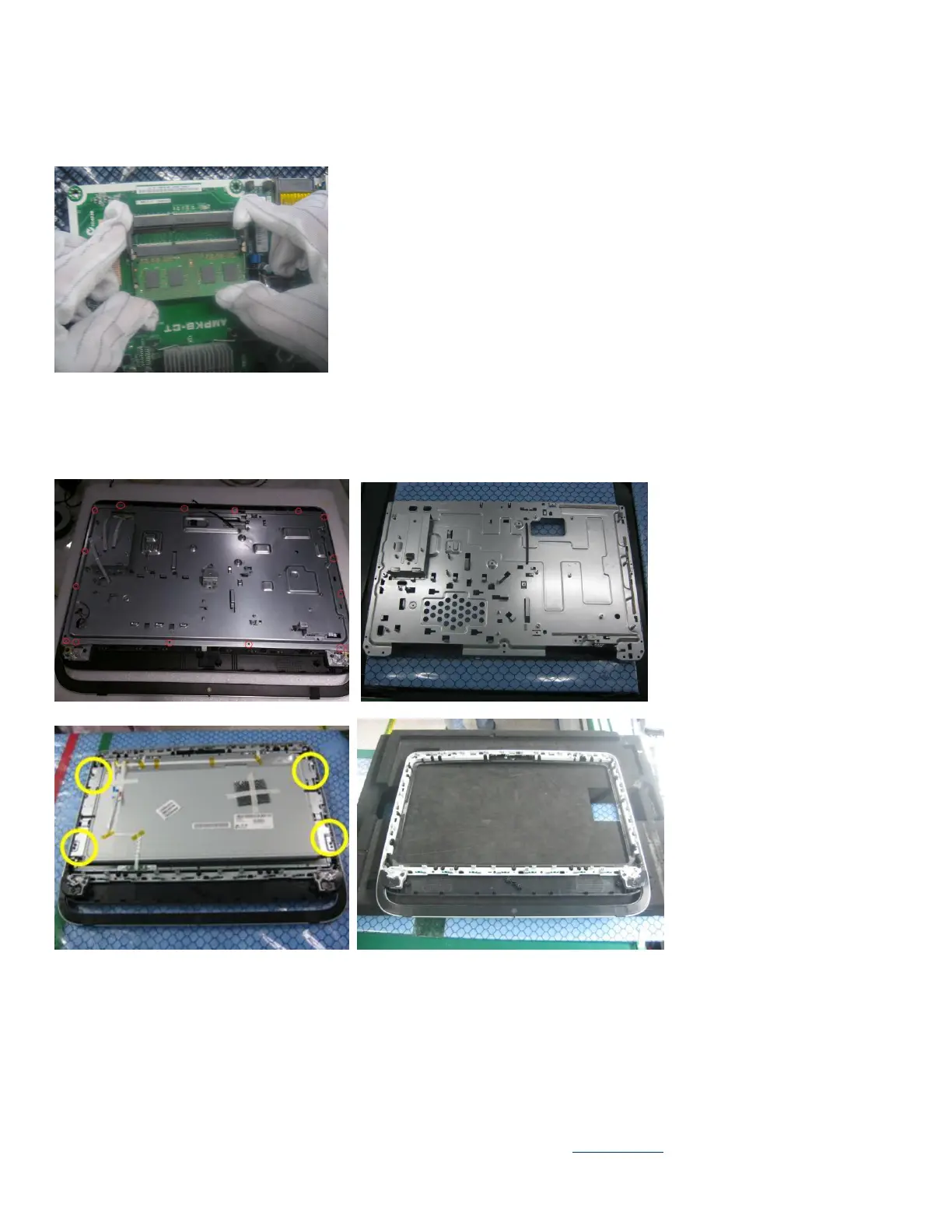

Pull both clicks outward that holding the memory to remove the DDR.
15, Separate Base pan and front bezel and panel
Remove 16 pcs screws with circles in red and 4pcs screws with circles in yellow to separate base pan and front bezel.
[BOE/LG/Samsung panel]
16.Remove backlight cable/LVDS cable/FFC cable and LCD bracket.
-backlight cable
