12. Disassemble DSP board

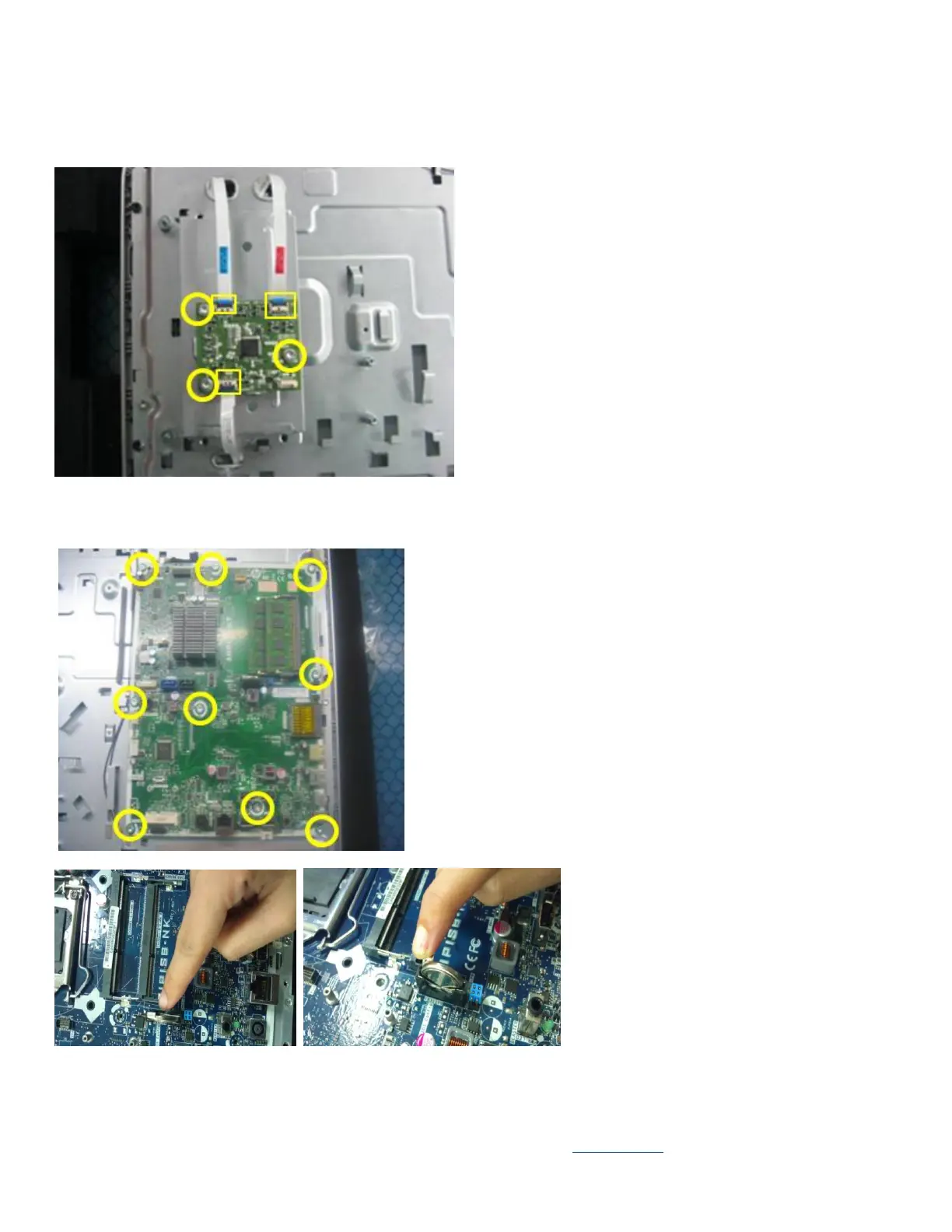

(1) Remove FFC cable*3 as below yellow.
(2) Remove 3pcs screws with circles in yellow.
13. Disassemble MB and MB battery
Remove 9pcs screws to disassemble Alloy MB
Pull backward the clip to release the battery
