HP Pavilion 23 TouchSmart - Disassemble MB Shielding; Disassemble HDD & ODD

EL-MF877-00 Page 4
Template Revision B
PSG instructions for this template are available at EL-MF877-01

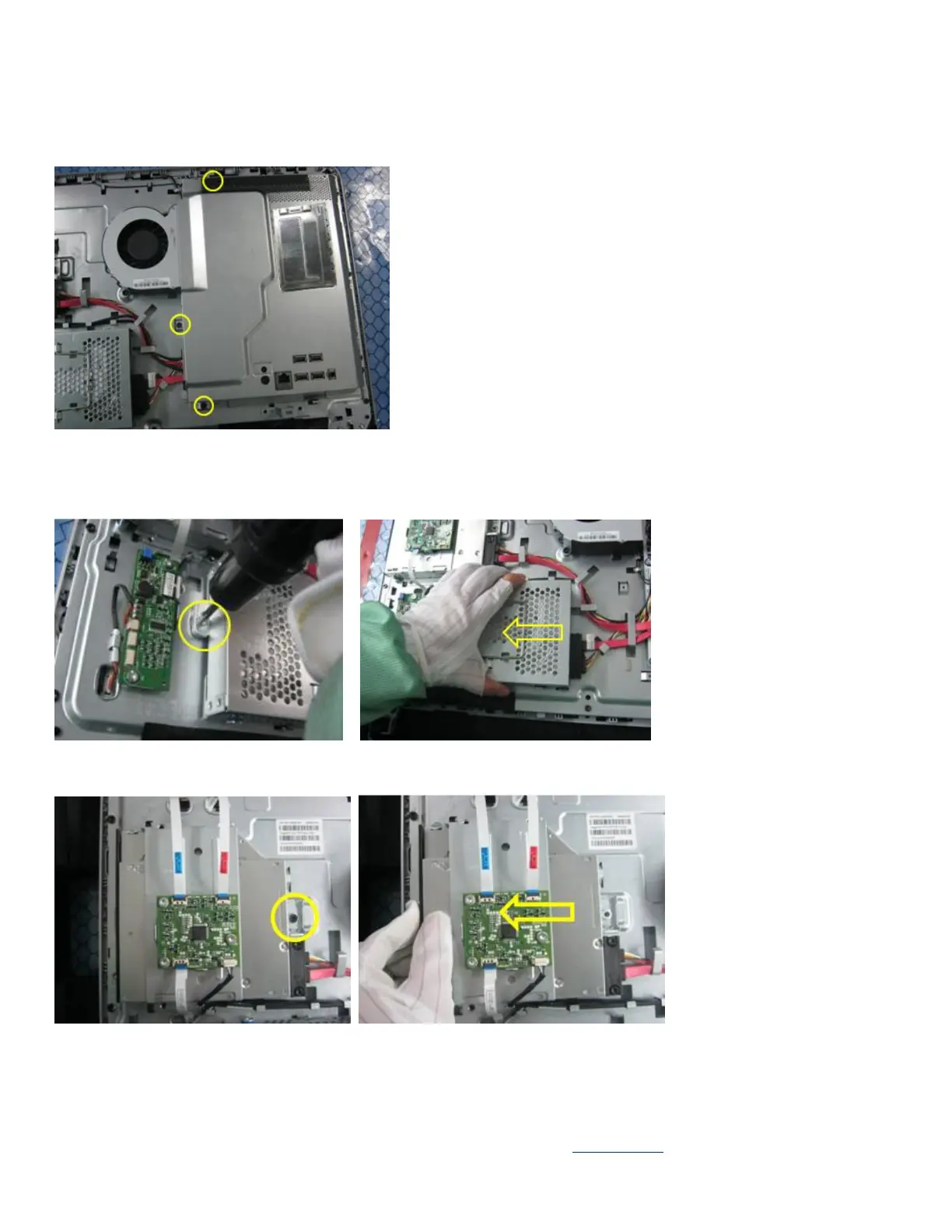

4. Disassemble MB shielding
Remove 3pcs screws with circles in yellow for Alloy.
5. Disassemble HDD & ODD
Remove 1pcs screw from HDD and pull backward to disengage the HDD from base pan.
Remove 1pcs screw and push ODD forward to slide from ODD cage.
