EL-MF877-00 Page 5
Template Revision B
PSG instructions for this template are available at EL-MF877-01

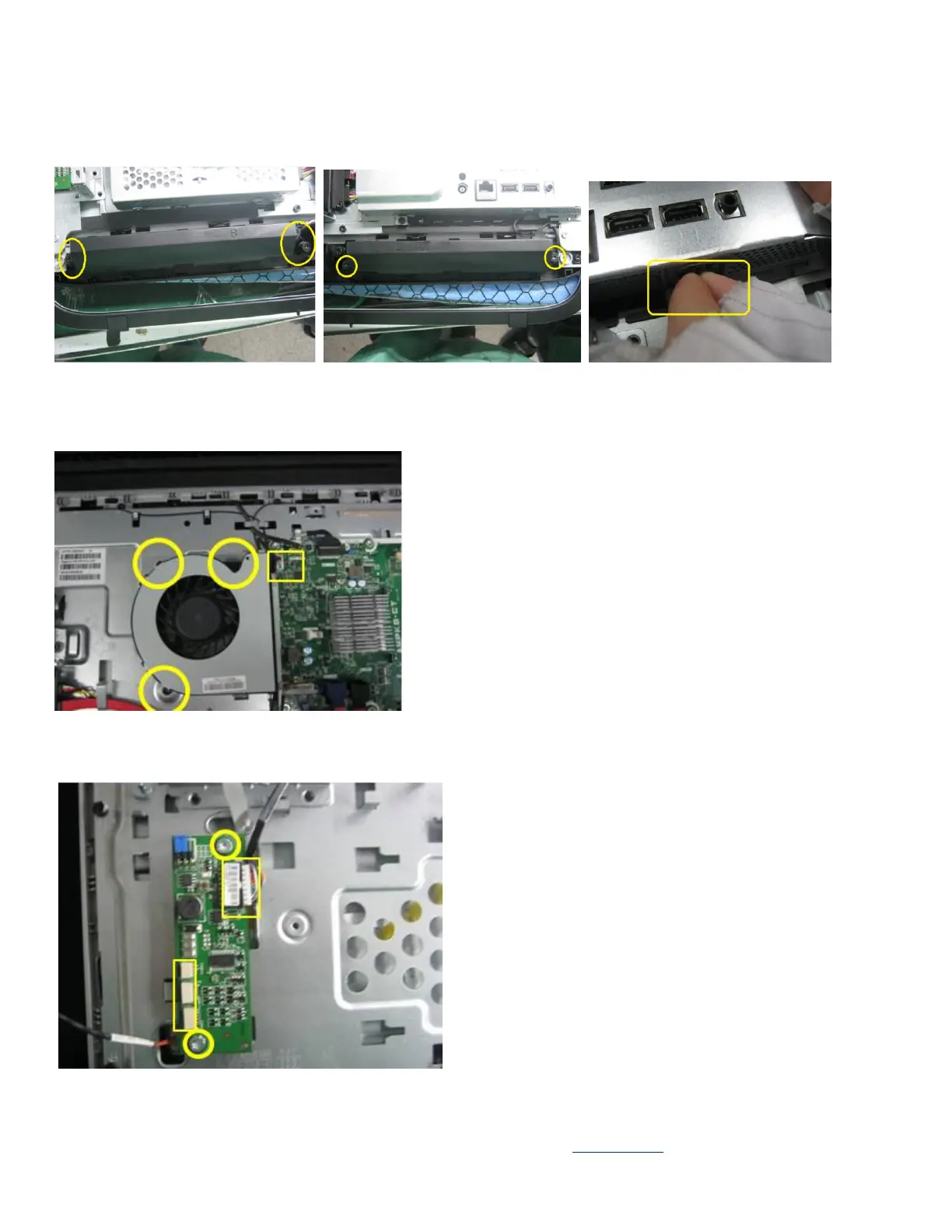

6. Disassemble speaker
Remove 4pcs screws from left and right,
Also remove the speaker cable in order to take out two speakers from system.
7, Disassemble FAN Module
Remove 3pcs screws and remove the cable to disassemble the fan.
8, Disassemble converter board
Remove two cables and 2pcs screws to remove the converter board.
To Next Page
