4–18 Maintenance and Service Guide
Removal and replacement procedures

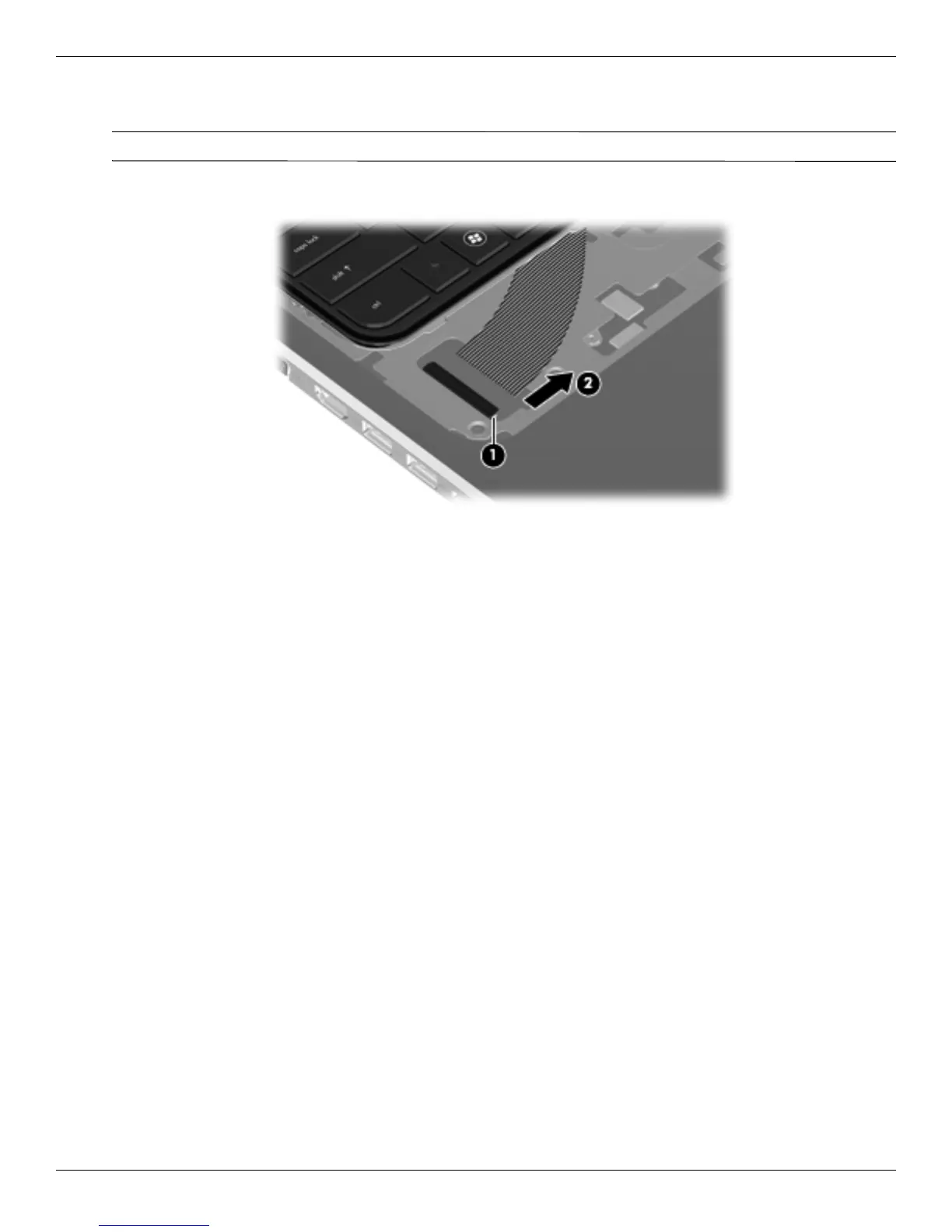

9. Carefully release the zero insertion force (ZIF) connector 1 to which the keyboard cable is attached, and then
disconnect the keyboard cable 2 from the system board.
Ä
CAUTION: Take care when releasing the ZIF connector. The connector can be easily damaged if handled incorrectly.
10. Remove the keyboard.
Reverse this procedure to install the keyboard.
