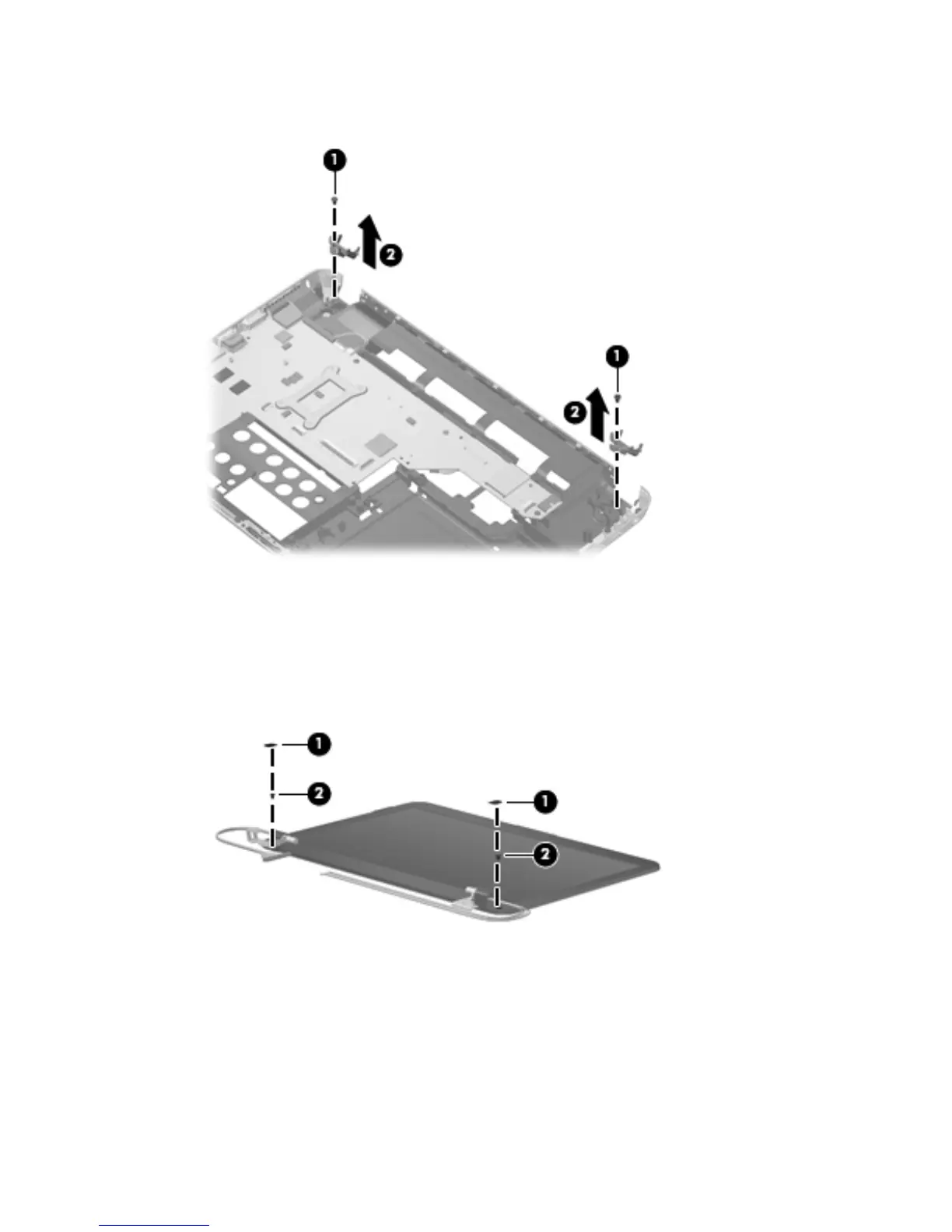

7. If it is necessary to remove the display brackets, remove the two Phillips PM2.0×3.0 screws (1)
that secure the brackets to base enclosure, and the remove the brackets (2).
8. If it is necessary to replace any of the display assembly internal components, remove the
following screw covers and screws. The display screw covers are included in the Display Screw
Kit, spare part number 608212-001.
(1) Two Mylar screw covers on the display bezel bottom edge
(2) Two Phillips PM2.5×5.0 screws
9. Flex the inside edge of the top (1), the left and right sides (2), and the bottom (3) of the display
bezel until the bezel disengages from the display back cover.
Component replacement procedures 67
