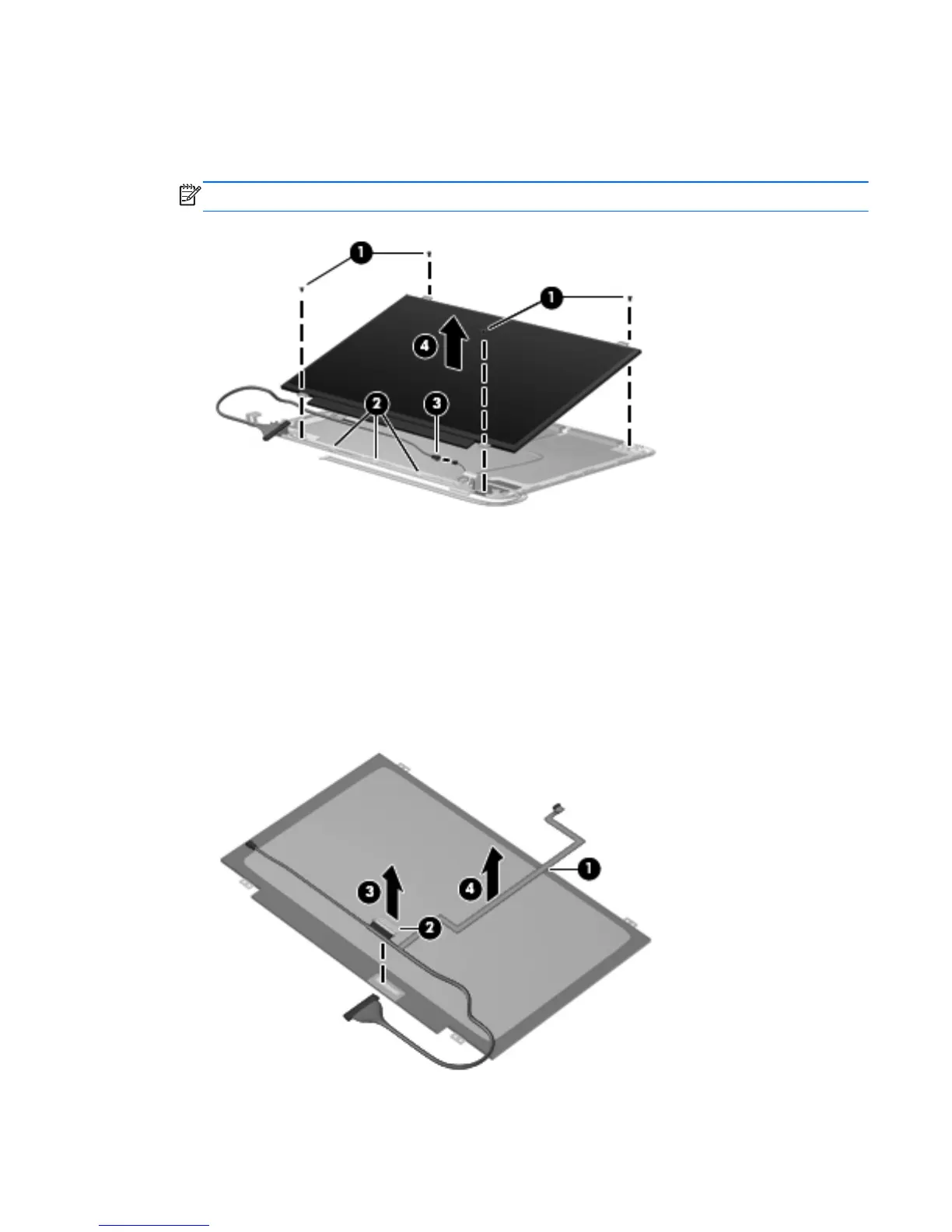

13. Remove the cable from the routing path (2) along the bottom of the enclosure, disconnect the
display panel cable from the HP logo light cable (3), and then lift the panel from the enclosure
(4). The display panel is available using the spare part number 608206-001 for models without
WWAN and 613666-001 for models with WWAN.
NOTE: The hinge cover screws are thicker than the other screws.
14. If it is necessary to replace the display cable, follow these steps:
a. Turn the display panel upside down in front of you.
b. Disengage the webcam cable from the glue securing it to the back of the display (1).
c. Peel back the tape that secures the display cable to the display (2).
d. Unplug the display cable from the display (3).
e. Remove the display cable from the display (4).
The display cable is available in the Display Cable Kit, spare part number 608211-001.
