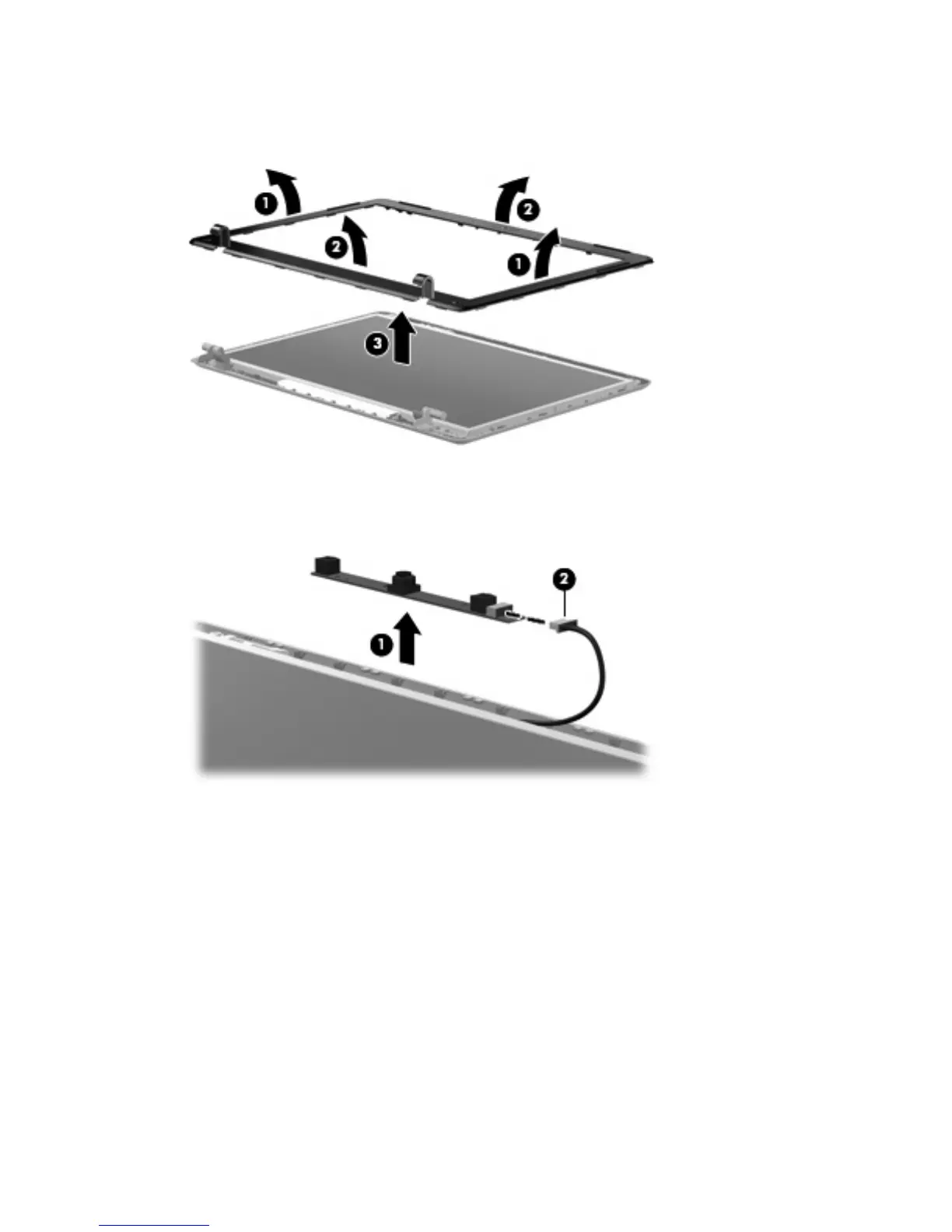

15. Remove the display bezel (3). The display bezel is available using spare part number 468797-001
on dv3000 models, 500953-001 on dv3500 models with an LCD display, and 500954-001 on
dv3500 models with an LED display.
16. If it is necessary to replace the webcam/microphone module, release the module (1) as far as the
webcam/microphone module allows.
17. Disconnect the webcam/microphone module cable from the module (2).
18. Remove the webcam/microphone module. The webcam/microphone module is available using
spare part number 468804-001 for dv3000 models, 500967-001 for dv3500 models.
19. If it is necessary to replace the display inverter, release the inverter (1) as far as the display panel
cable and the backlight cable will allow.
66 Chapter 4 Removal and replacement procedures
