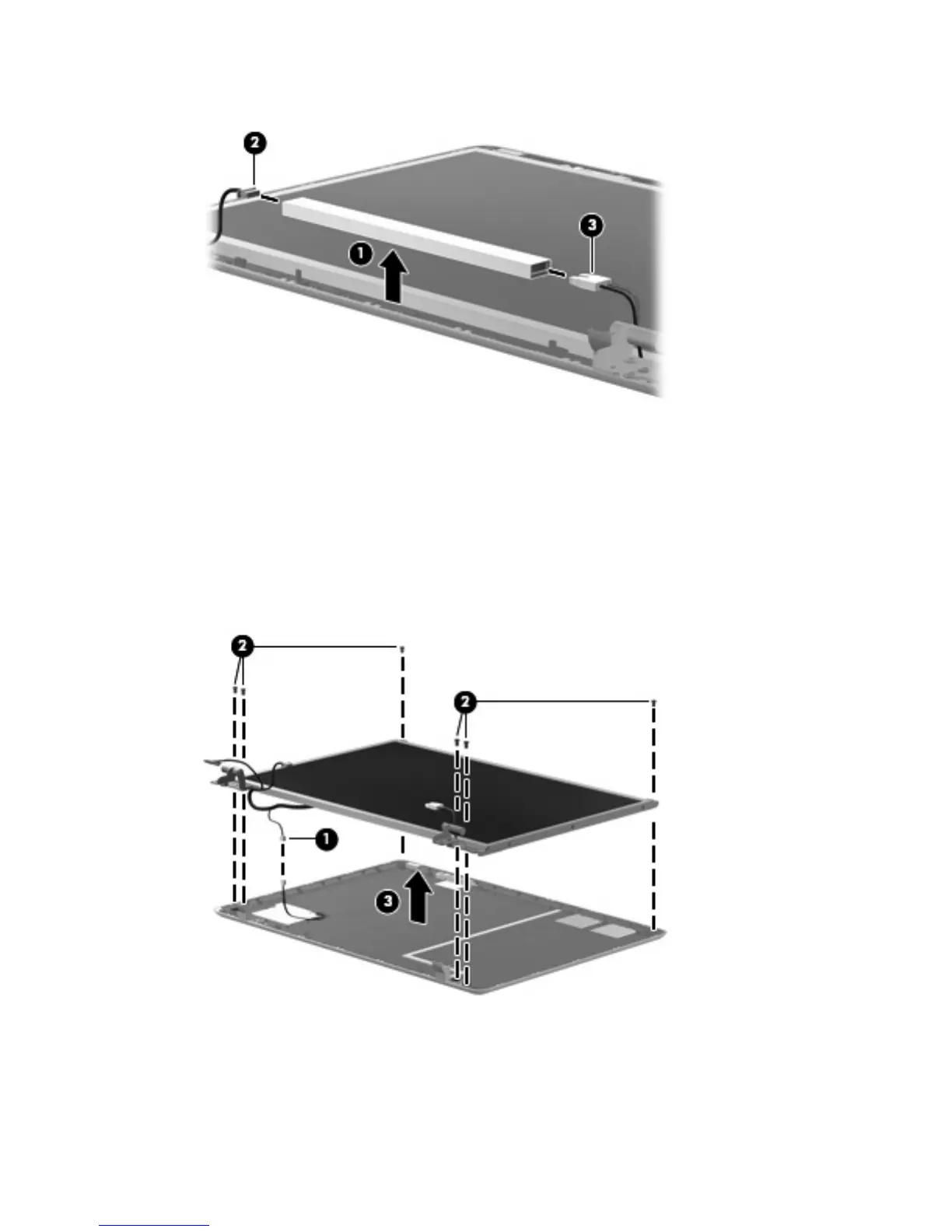

20. Disconnect the display panel cable (2) and the backlight cable (3) from the display inverter.
21. Remove the inverter. The display inverter is available using spare part number 468798-001 for
dv3000 models, 500957-001 for dv3500 models.
22. If it is necessary to replace the display panel, disconnect the display logo LED board cable (1) from
the display panel cable.
23. Remove the six Phillips PM2.5×5.0 screws (2) that secure the panel to the display enclosure.
24. Remove the display panel (3) from the display enclosure. The display panel is available using the
spare part number 468796-001 for dv3000 models, 496105-001 for dv3500 models with an LCD
display, and 496106-001 for dv3500 models with an LED display.
25. If it is necessary to replace the display hinges, remove the three Phillips PM2.0×3.0 screws (1) that
secure each hinge to the display panel.
Component replacement procedures 67
