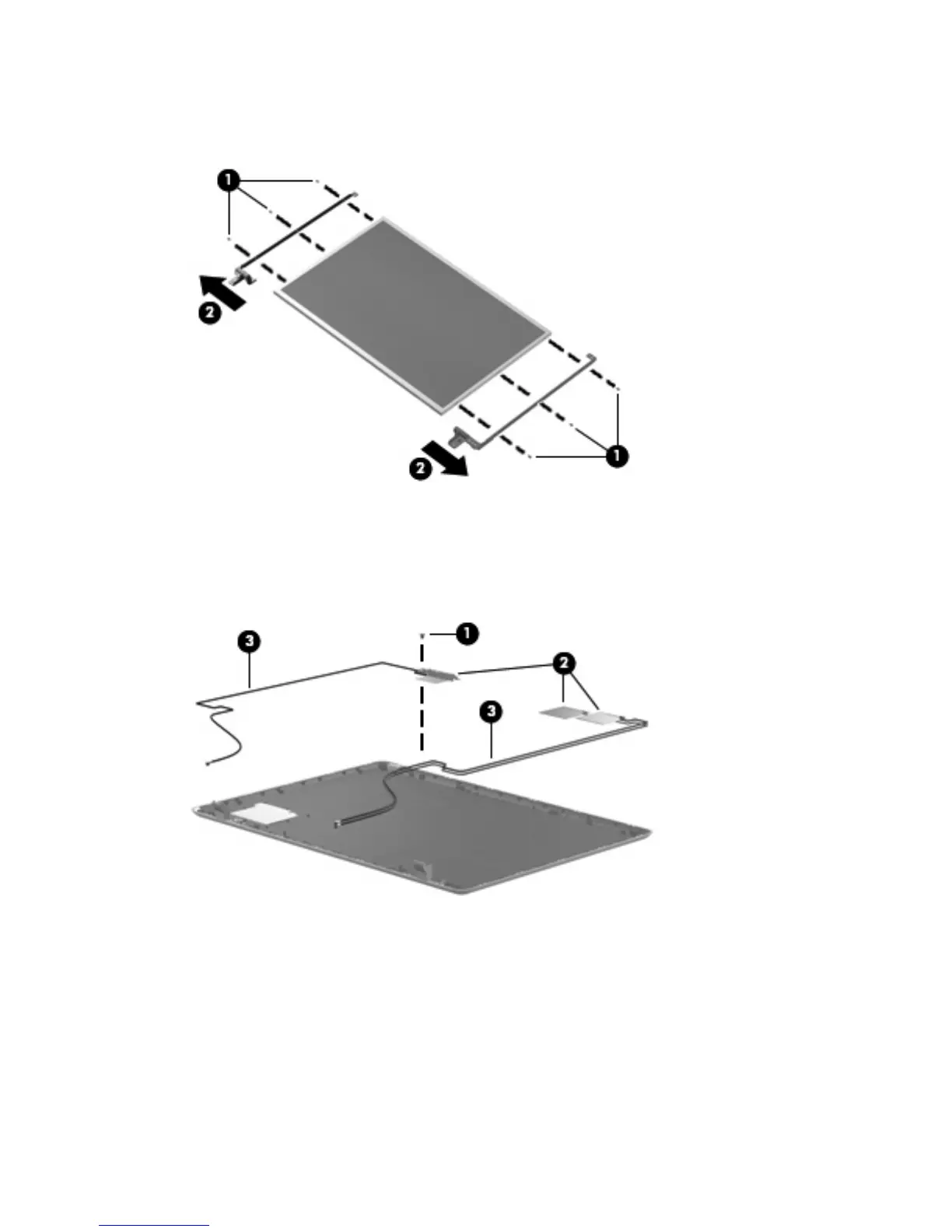

26. Remove the display hinges (2) from the display panel. The display hinges are available using spare
part number 468799-001 for dv3000 models, 500959-001 for dv3500 models with an LCD display,
500960-001 for dv3500 models with an LED display.
27. If it is necessary to replace the wireless antenna transceivers and cables, remove the Phillips
PM2.5×4.0 screw (1) that secures the left transceiver to the display enclosure.
28. Detach the wireless antenna transceivers (2) from the display enclosure.
29. Remove the wireless antenna cables from the clips (3) built into the display enclosure.
30. Remove the wireless antenna transceivers and cables from the display enclosure. The wireless
antenna transceivers and cables are available in the Display Cable Kit, spare part number
468800-001 for dv3000 models, 500961-001 for dv3500 models with an LCD display, 500962-001
for dv3500 models with an LED display.
68 Chapter 4 Removal and replacement procedures
