4–30 Maintenance and Service Guide
Removal and replacement procedures

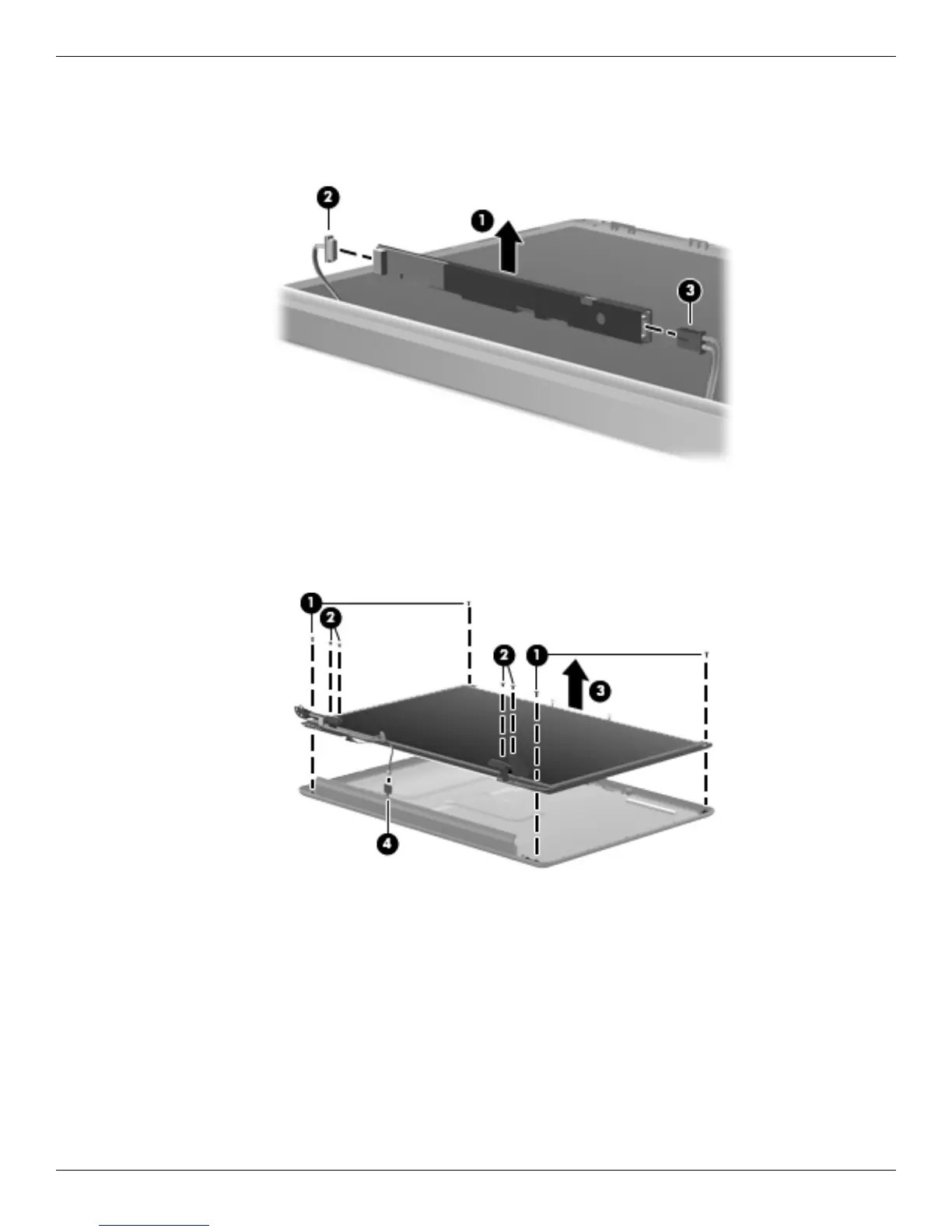

10. Release the inverter 1 from the clips in the display enclosure as far as the display panel cable and the backlight
cable will allow.
11. Disconnect the display panel cable 2 and the backlight cable 3 from the display inverter. The display inverter
is available using spare part number 486736-001.
12. Remove the four Phillips PM2.5×5.0 screws 1 and the four Phillips PM2.5×3.0 screws 2 that secure the
display panel to the display enclosure.
13. Lift the display panel 3 out of the display enclosure and disconnect the display panel cable 4. The display
panel is available using the spare part number 483261-001.
