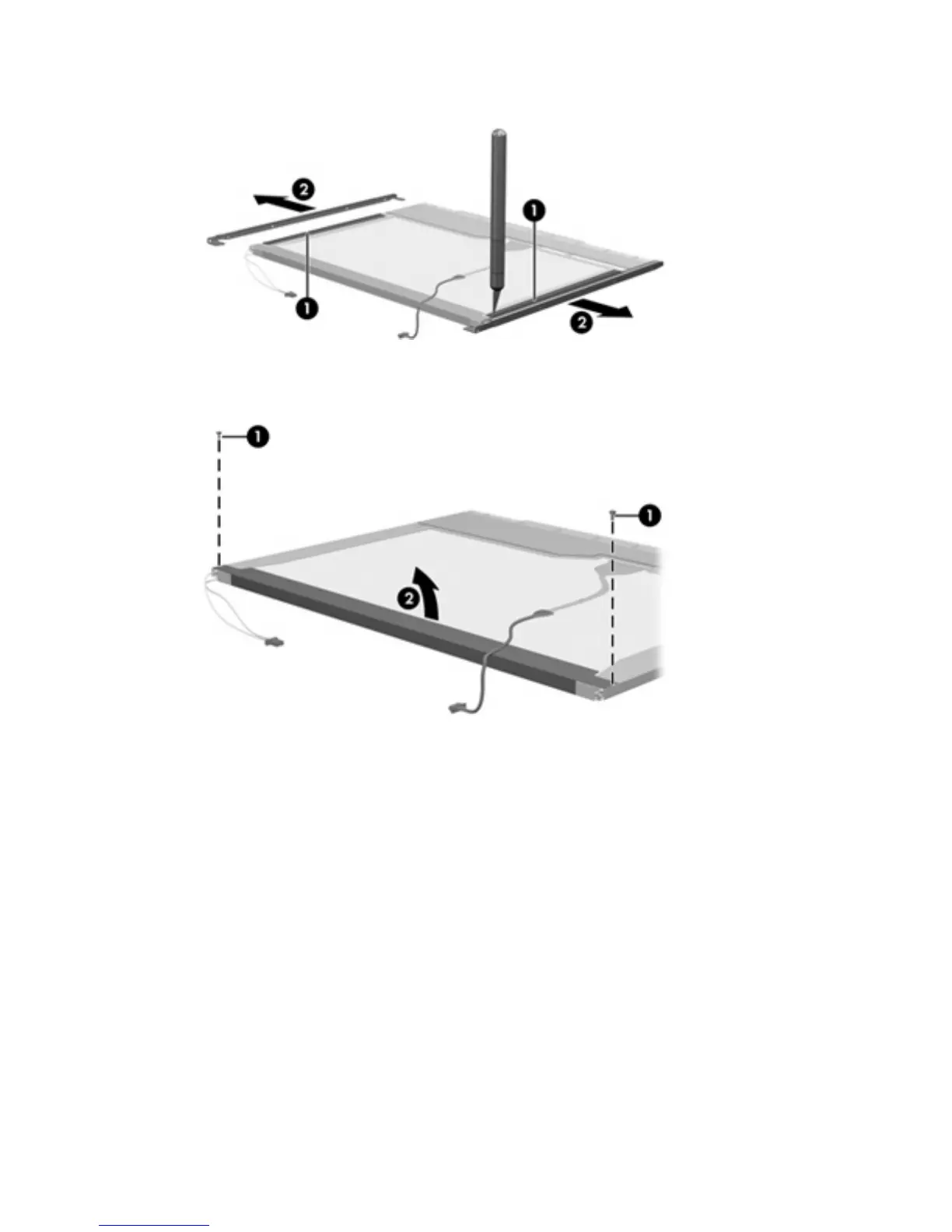

10. Remove the display panel frame (2) from the display panel.

11. Remove the screws (1) that secure the backlight cover to the display panel.

12. Lift the top edge of the backlight cover (2) and swing it outward.

13. Remove the backlight cover.

14. Turn the display panel right-side up.

Display 157

Questions and Answers:

Need help?

Do you have a question about the HP PAVILION DV5 and is the answer not in the manual?

General

CPU	Intel Core 2 Duo
Graphics	NVIDIA GeForce 9600M GT
Memory	4GB DDR2
Display	15.4"
Screen Resolution	1280x800
Hard Drive	250 GB HDD
Operating System	Windows Vista
Optical Drive	DVD±RW
Wireless	802.11a/b/g/n
Weight	2.65 kg
Ports	3 x USB 2.0, 1 x HDMI, 1 x VGA, 1 x RJ-45, 1 x ExpressCard/54
