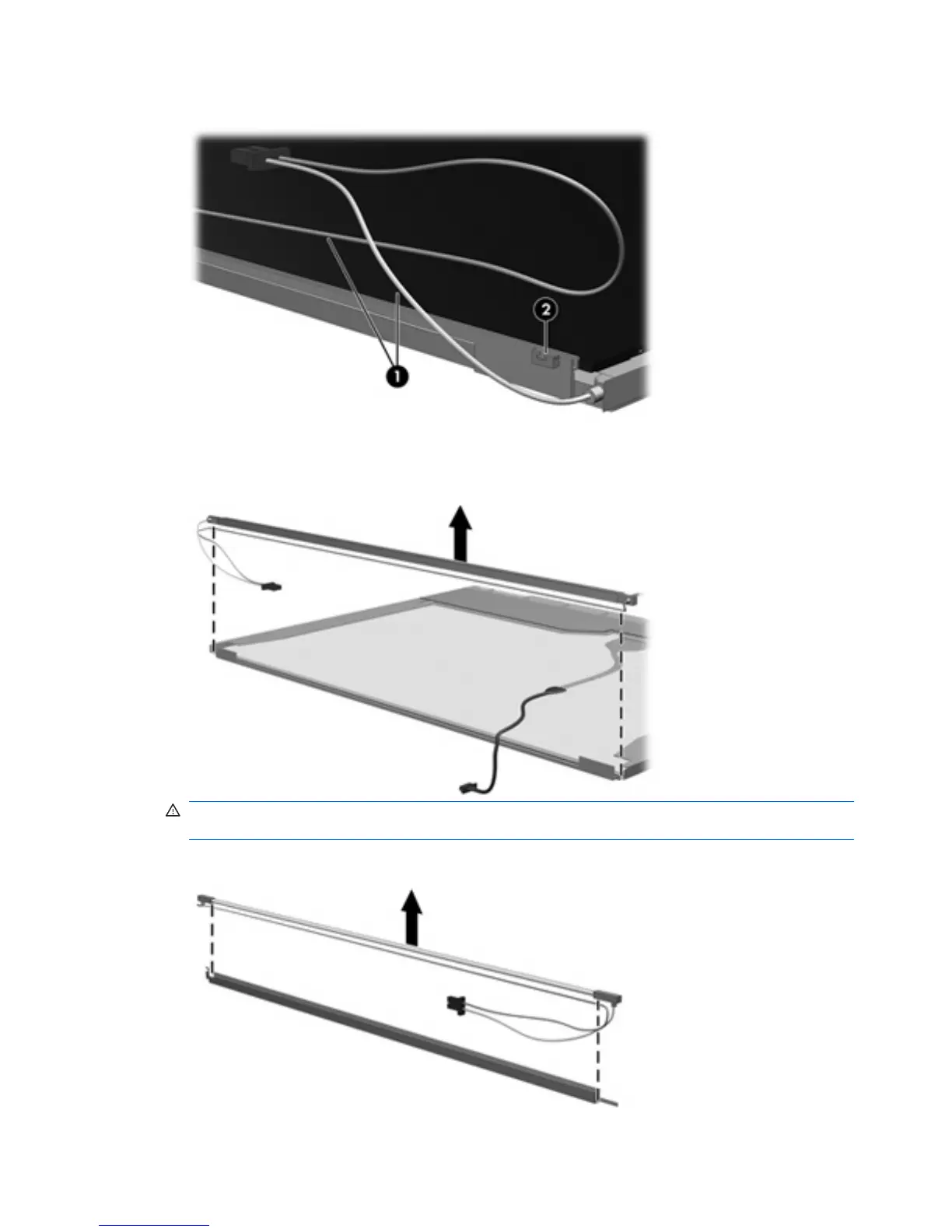

15. Remove the backlight cables (1) from the clip (2) in the display panel.

16. Turn the display panel upside down.

17. Remove the backlight frame from the display panel.

WARNING! The backlight contains mercury. Exercise caution when removing and handling the

backlight to avoid damaging this component and causing exposure to the mercury.

18. Remove the backlight from the backlight frame.

158 Chapter 11 Recycling

Questions and Answers:

Need help?

Do you have a question about the HP PAVILION DV5 and is the answer not in the manual?

General

CPU	Intel Core 2 Duo
Graphics	NVIDIA GeForce 9600M GT
Memory	4GB DDR2
Display	15.4"
Screen Resolution	1280x800
Hard Drive	250 GB HDD
Operating System	Windows Vista
Optical Drive	DVD±RW
Wireless	802.11a/b/g/n
Weight	2.65 kg
Ports	3 x USB 2.0, 1 x HDMI, 1 x VGA, 1 x RJ-45, 1 x ExpressCard/54
