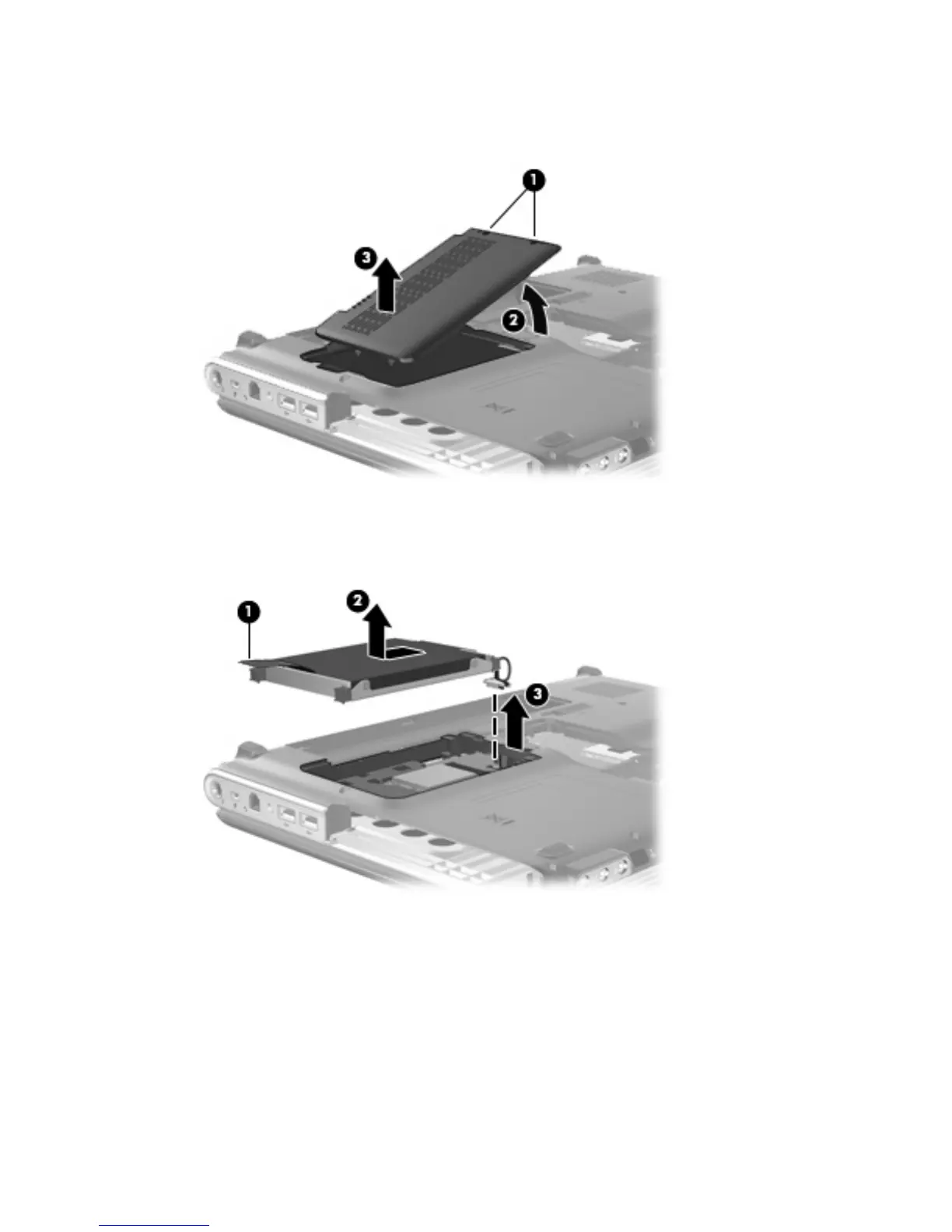

3. Lift the right side of the hard drive bay cover (2), swing it up and to the left, and remove the

cover (3). The hard drive bay cover is included in the Plastics Kit, spare part number

486793-001.

4. Use the Mylar tab (1) to slide the hard drive to the left (2), and then lift it to release it from the hard

drive bay.

5. Disconnect the hard drive cable (3) from the system board.

6. Remove the hard drive from the hard drive bay.

Component replacement procedures 63
