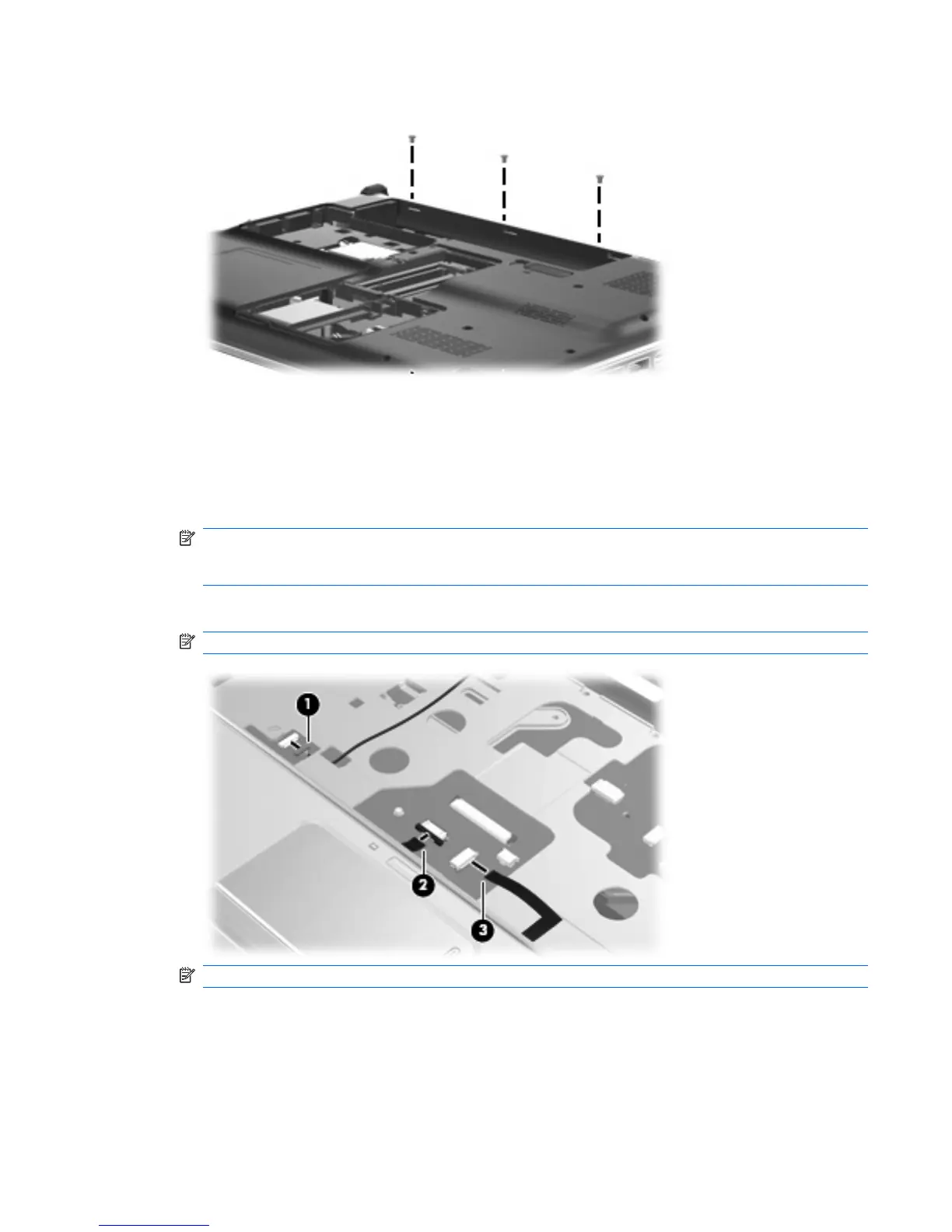

3. Remove the three Phillips PM2.5×4.0 screws secure the top cover to the computer.
4. Turn the computer right-side up, with the front toward you.
5. Disconnect the following cables from the system board:
(1) Bluetooth module cable
(2) TouchPad cable
NOTE: On computer models equipped with a standard display assembly, this cable connects to
a ZIF connector on the system board. On computer models equipped with a Flush Glass display
assembly, this cable connects to a LIF connector on the system board.
(3) Fingerprint reader board cable
NOTE: This cable connects to a LIF connector on the system board.
NOTE: Step 6 applies only to computer models equipped with standard display assemblies.
6. Remove the two Phillips PM2.5×7.0 screws (1) that secure the top cover to the computer.
Component replacement procedures 85
