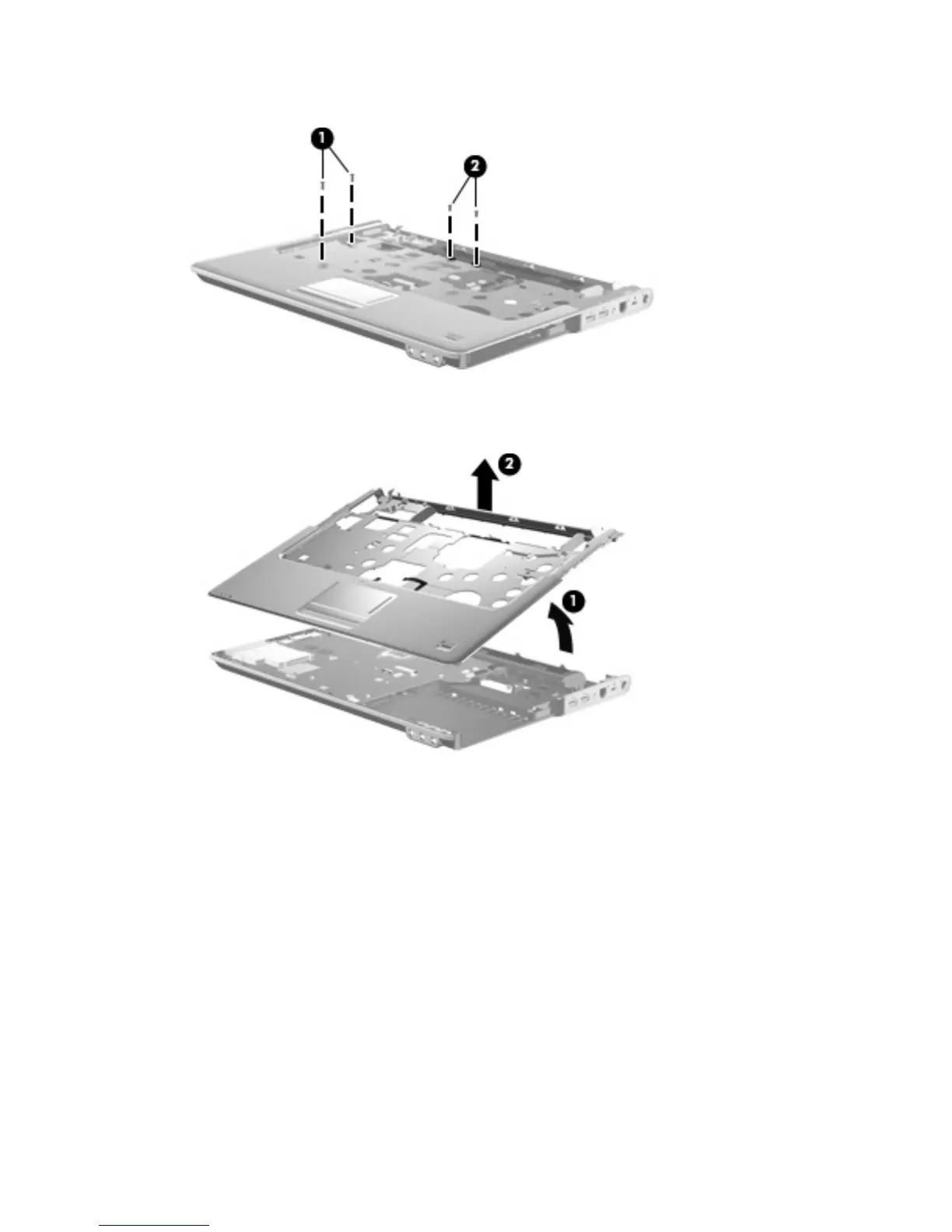

7. Remove the two Phillips PM2.5×6.0 screws (2) that secure the top cover to the computer.

8. Lift the rear edge of the top cover (1) until it rests at an angle.

9. Remove the top cover (2) by lifting it straight up.

Reverse this procedure to install the top cover.

86 Chapter 4 Removal and replacement procedures
