5–18 Maintenance and Service Guide
Removal and Replacement Procedures
6. If it is necesary to replace the optical drive bracket, remove
the two Phillips PM2.0×4.0 screws 1 that secure the bracket
to the optical drive.
7. Remove the optical drive bracket 2.

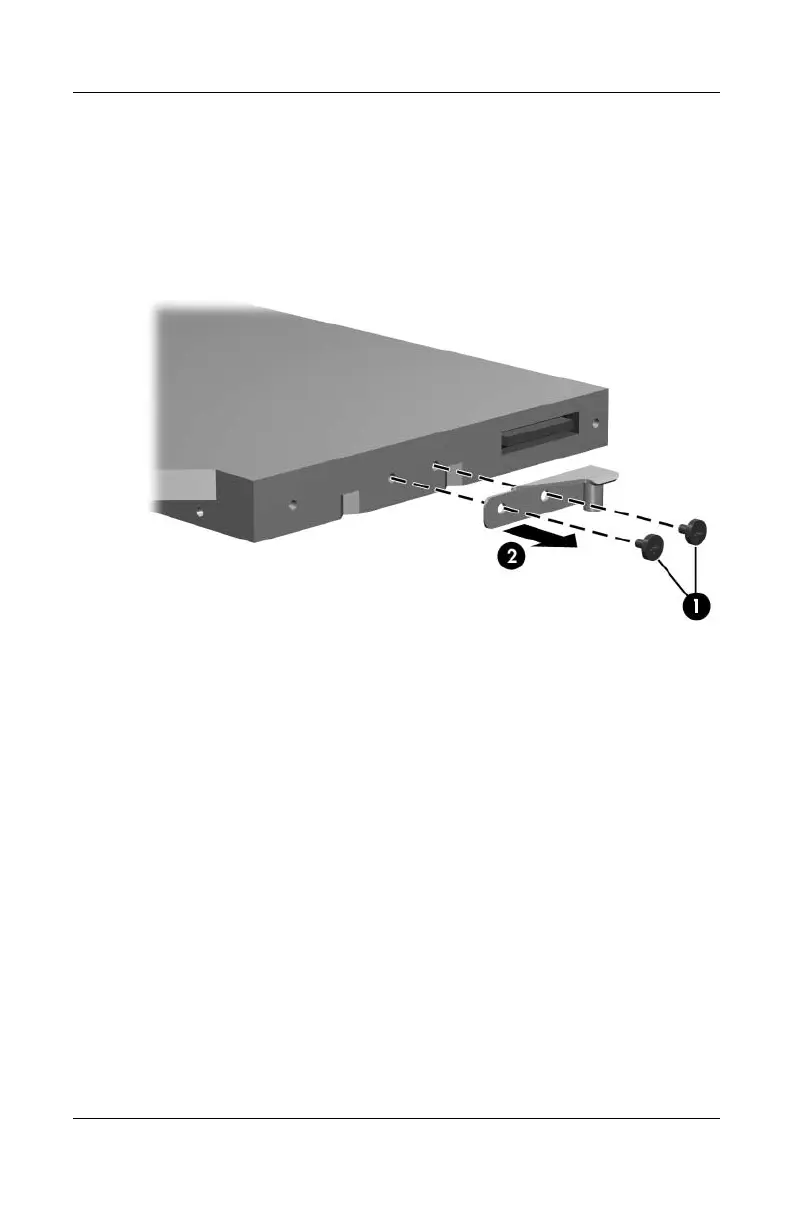

Removing the Optical Drive Bracket
Reverse the above procedure to install an optical drive.
