5–22 Maintenance and Service Guide
Removal and Replacement Procedures
6. Turn the computer display-side up with front toward you.
7. Open the computer as far as possible.

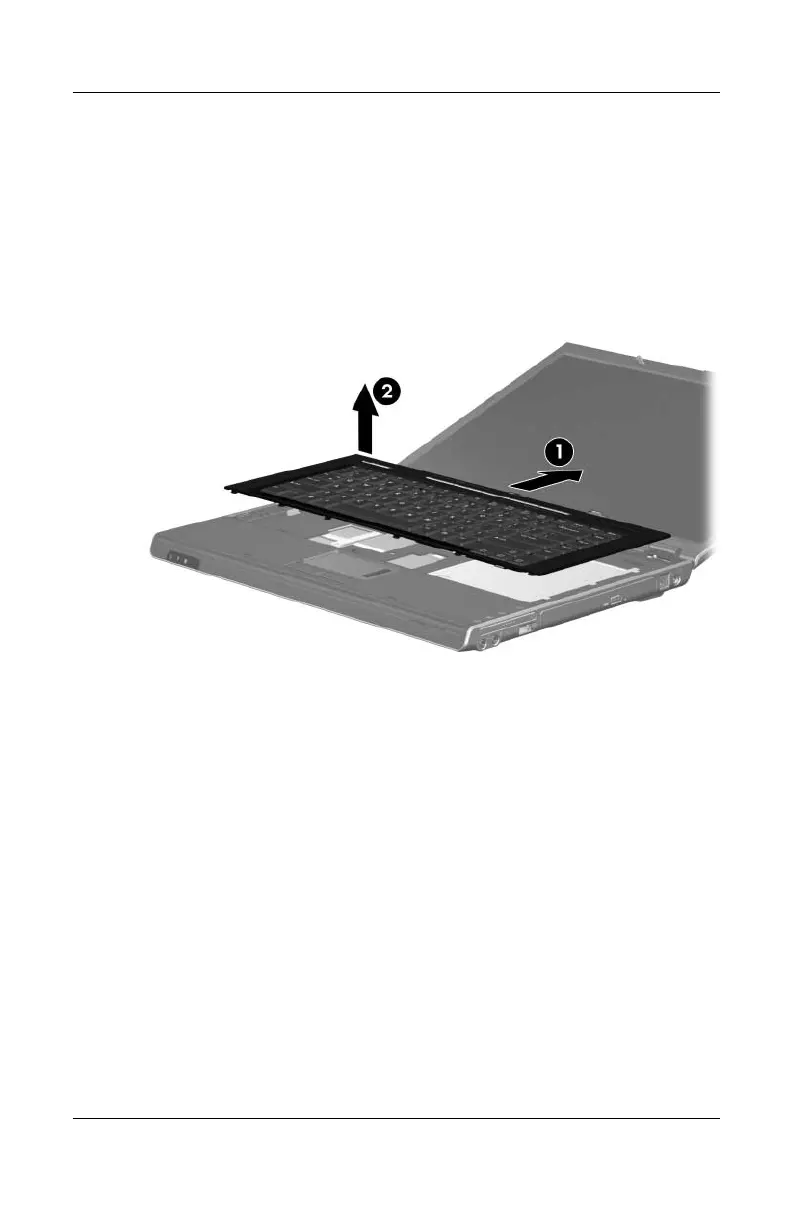

8. Slide the keyboard frame 1 toward the back of the computer.
9. Lift and hold the rear edge of the keyboard frame 2 until the
LED board cable connector is accessible.
Releasing the Keyboard Frame
