5–26 Maintenance and Service Guide
Removal and Replacement Procedures

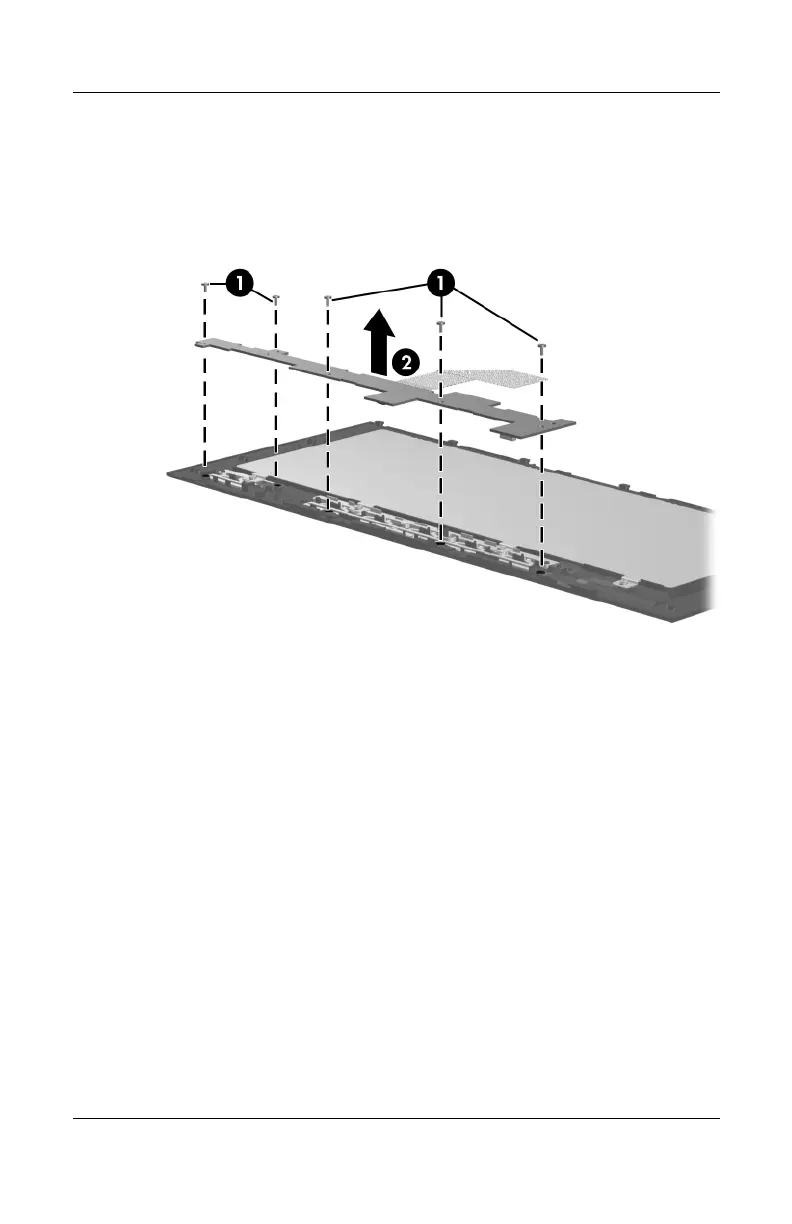

3. Remove the five Phillips PM2.0×4.0 screws 1 that secure
the LED board to the keyboard frame.
4. Remove the LED board 2.
Removing the LED Board
Reverse the above procedure to install the LED board.
