5–28 Maintenance and Service Guide
Removal and Replacement Procedures

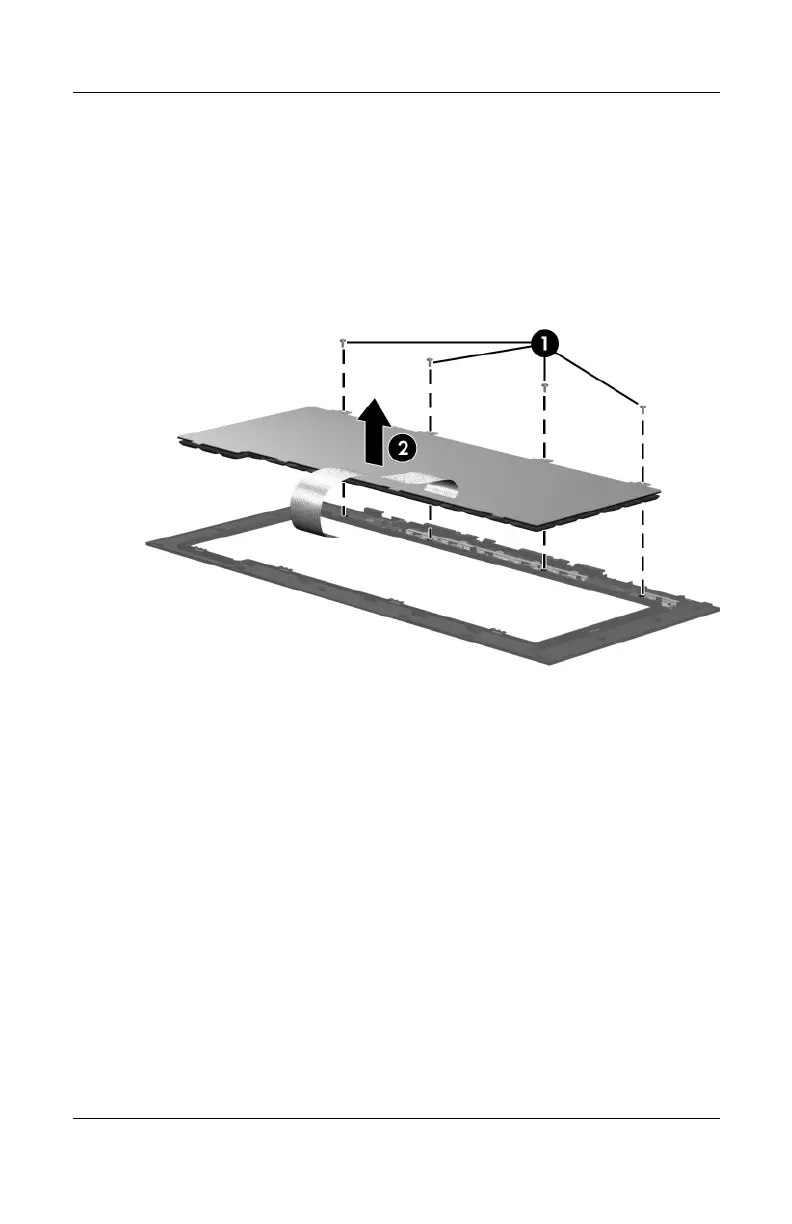

5. Remove the four Phillips PM2.0×3.0 screws 1 that secure
the keyboard to the keyboard frame.
6. Remove the tabs on the bottom of the keyboard from the slots
in the keyboard frame.
7. Remove the keyboard 2.
Removing the Keyboard
Reverse the above procedure to install the keyboard.
