Removal and Replacement Procedures
Maintenance and Service Guide 5–41
2. Turn the computer upside down with the front toward you.
3. Remove the two Phillips PM2.5×3.0 screws 1 in the optical
drive bay and the silver Phillips PM2.5×5.0 screw 2 in the
hard drive bay that secure the top cover to the computer.

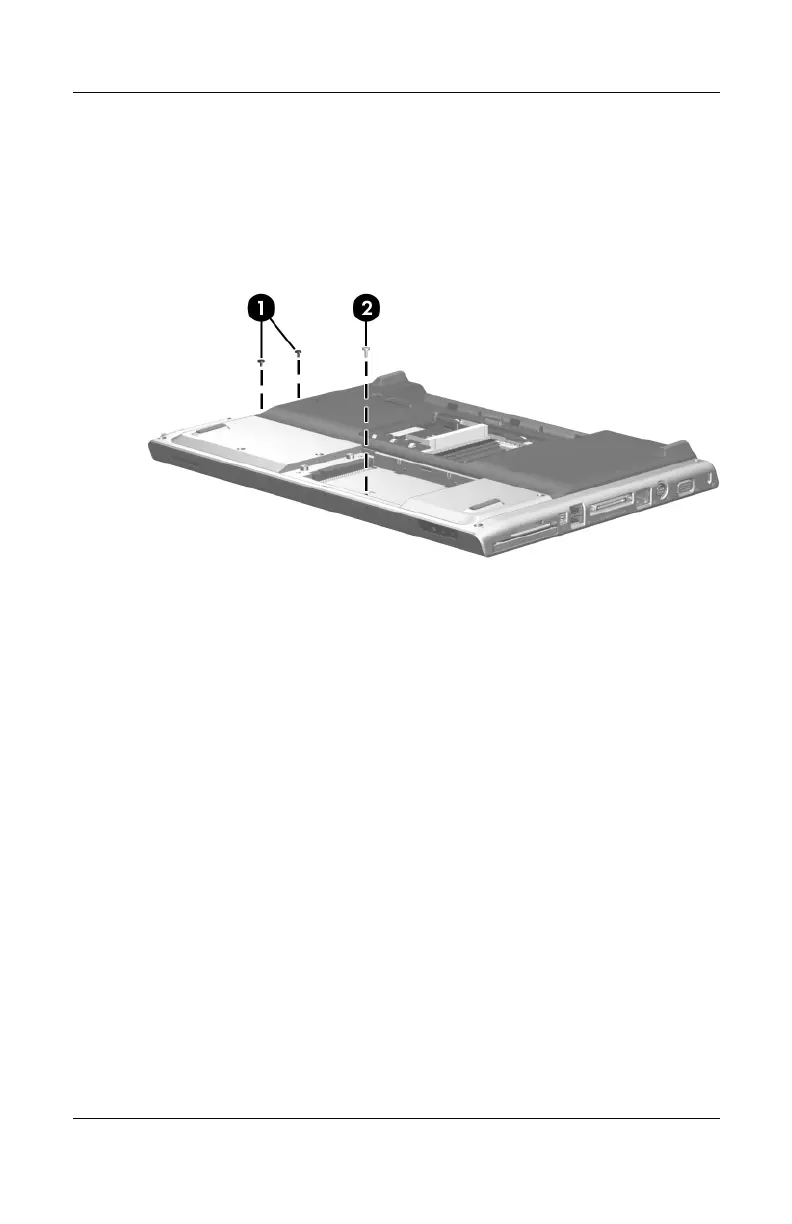

Removing the Top Cover Screws, Part 1
