5–70 Maintenance and Service Guide
Removal and Replacement Procedures

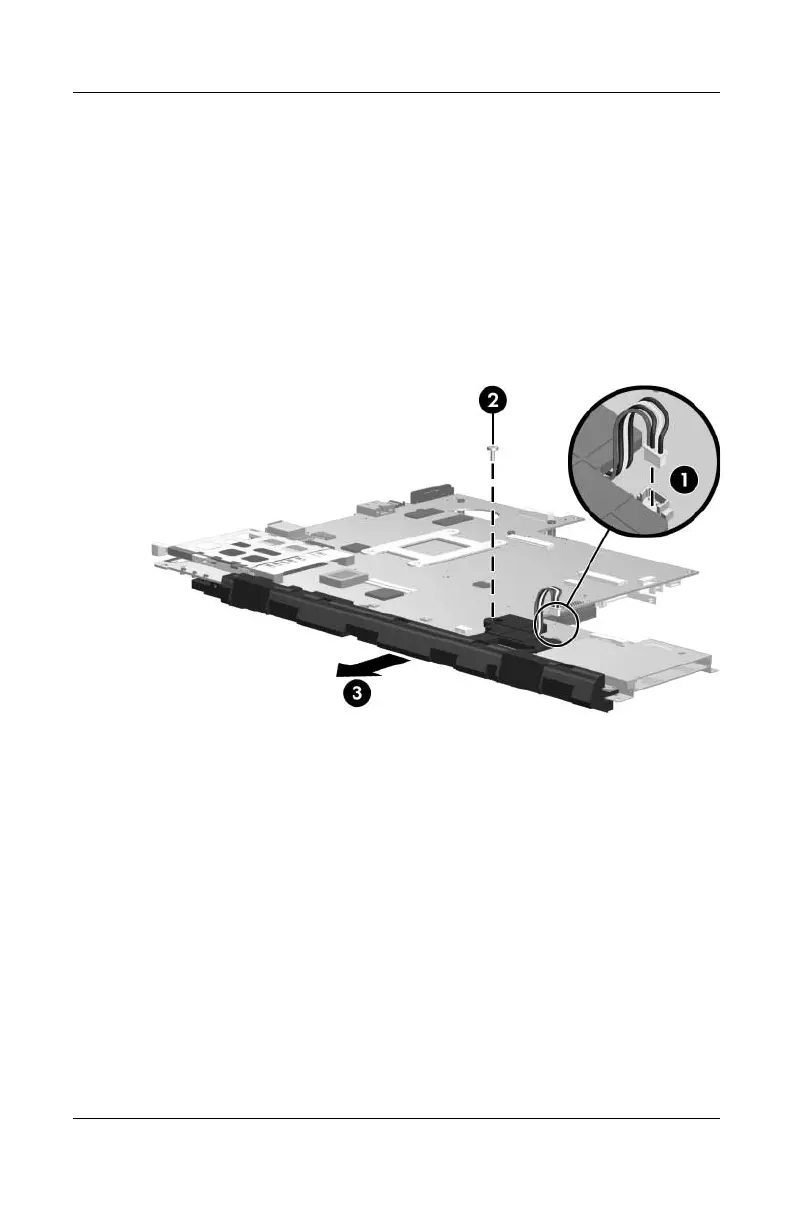

2. Turn the system board top-side up with the expansion port 2
toward you.
3. Disconnect the speaker cable 1 from the system board.
4. Remove the PM2.5×6.0 screw 2 that secures the speaker
to the system board.
5. Slide the speaker 3 forward and remove it from the
system board.
Removing the Speaker
Reverse the above procedure to install the speaker.
