Removal and Replacement Procedures
Maintenance and Service Guide 5–73
4. Turn the system board top-side up with the expansion port 2
toward you.
5. Disengage the hooks 1 on the PC Card assembly from the
slots on the PC Card connector 2.
6. Remove the PC Card assembly from the system board 3.

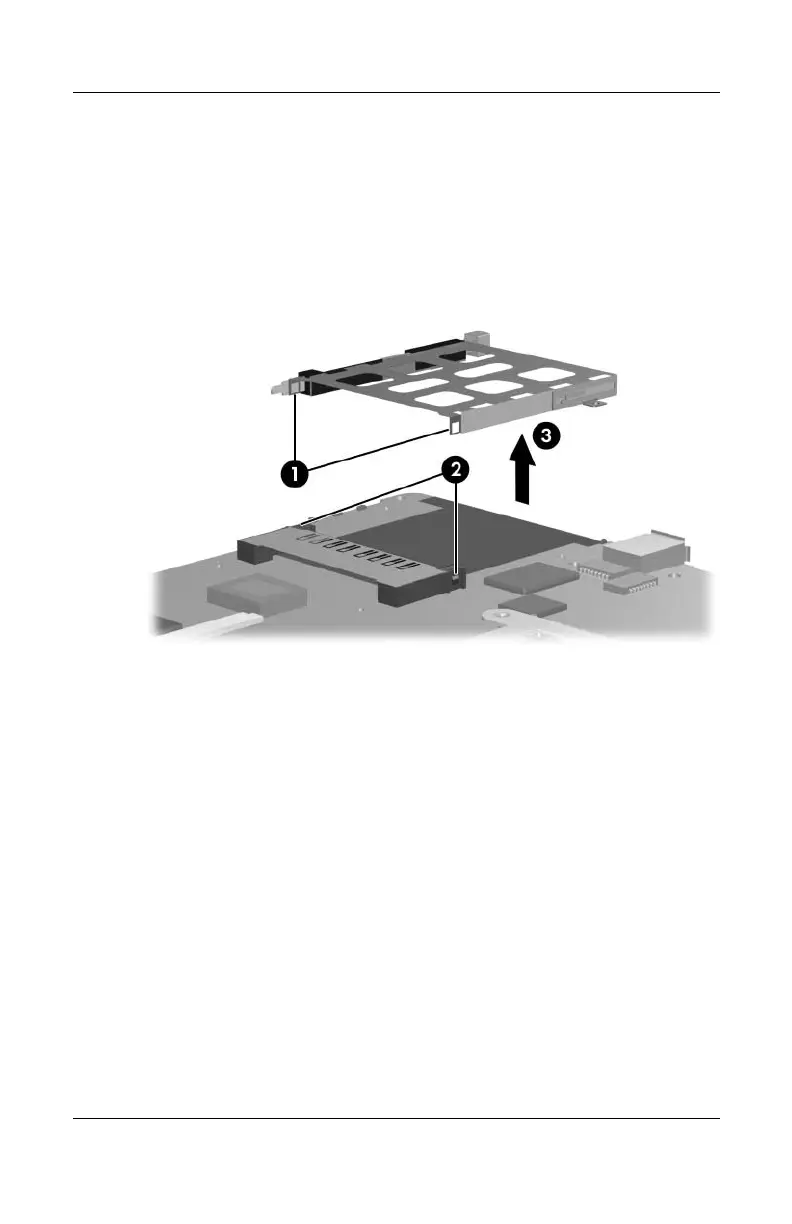

Removing the PC Card Assembly
Reverse the above procedures to install the PC Card assembly.
