C–2 Maintenance and Service Guide
Screw Listing

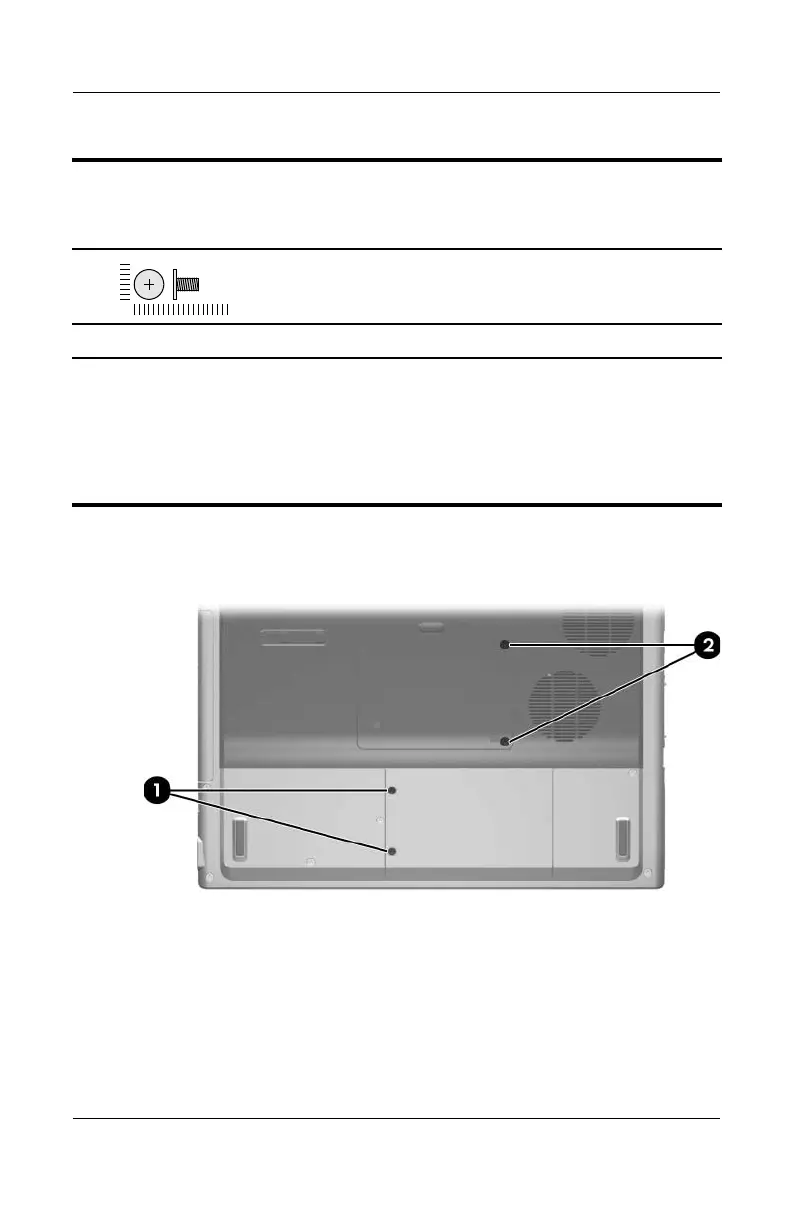

Black Phillips PM2.5×5.0 Screw Locations
Table C-2
Black Phillips PM2.5×5.0 Screw
Color Qty. Length Thread
Head
Width
Black 4 5.0 mm 2.5 mm 6.0 mm
Where used:
1 Two screws that secure the hard drive cover to the computer (screws are
captured on the cover by C clips; documented in Section 5.4)
2 Two screws that secure the memory/Mini PCI module compartment cover
to the computer (screws are captured on the cover by C clips; documented in
Section 5.6)
